1300mm Self Adhesive Tape Slitting Machine
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
7-15 work days
Product Description
1300mm Self Adhesive BOPP Tape Slitting Machine
Application 1300mm Self Adhesive BOPP Tape Slitting Machine :
This machine is suitable for slitting self-adhesive tape such as BOPP adhesive packing tape /OPP Tape Jumbo roll slitting machine .
Feature
| 1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
| 2. PLC control system with touch panel operation. |
| 3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force. |
| 4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding. |
| 5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling. |
| 6. (Optional) Auto labeling and slitting stationery tape functions. |
Main Technical Parameters 1300mm Self Adhesive BOPP Tape Slitting Machine :
| Model | YU-210 |
| Effective width | 1350 mm |
| Max. unwind diameter | 800mm |
| Min. slitting width | 10mm |
| Max. rewind diameter(shaft1") exchange 4 shafts | 75mm |
| Max. rewind diameter(shaft3") exchange 4 shafts | 180mm |
| Max. rewind diameter(shaft3") exchange 2 shafts | 250mm |
| Machine speed |
0-180m/m |

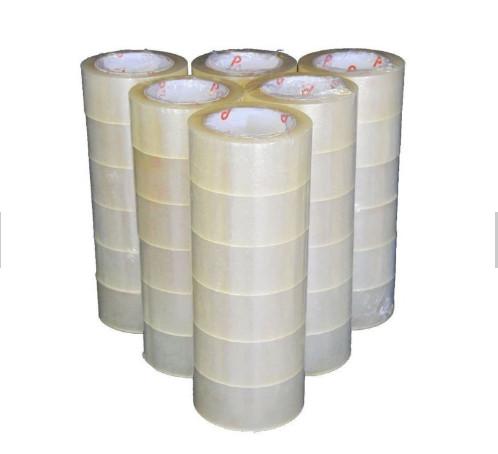

Finished Product:
