Jumbo Roll 10mm Bopp Adhesive Tape Slitting Machine
Super Clear Bopp Adhesive Packing Tape Jumbo Roll Rewinding Cutting Machine
Application:
This machine is suitable super clear bopp adhesive packing tape jumbo rill rewinding cutting machine .
Technical Parameters of super clear bopp adhesive packing tape jumbo roll rewinding cutting machine :
| Name | clear packing tape slitter rewinder machine |
| Effective width | 1300mm 1600mm |
| Speed | 180m/ min |
| Paper tube diameter | 25.4-76.2mm |
| slitting width | 25-1600mm |
| Power | 380V 4KW |
| Working Air Pressure | 6bar |
|
Max. feeding diameter Max. cutting length |
800 mm 500-1000m |
Paper tube cutting machine:Cutting long paper core to the right size you want.
Paper tube loader:Set the paper core on the rewinding shafts.
Tape rewinder:Rewinding the imperfect tapes to good one.
1. Automatic consecutive 4-shaft changing:
when the rewinding operation is finished on one set of shafts, the machine will change automatically onto another set of shafts without any stop. It will have higher efficiency.
2. Pneumatic brake:
Brings the machine to an immediate halt when working at high speed because of inertia ,ensures excellent steady performance.
3. Three-step length counter:
Giving accurate pre-setting of rewinding length.
4. Automatic tension control
5. (Optional) Auto labeling and slitting stationery tape functions
6. (Optional)auto loading device for heavy jumbo roll

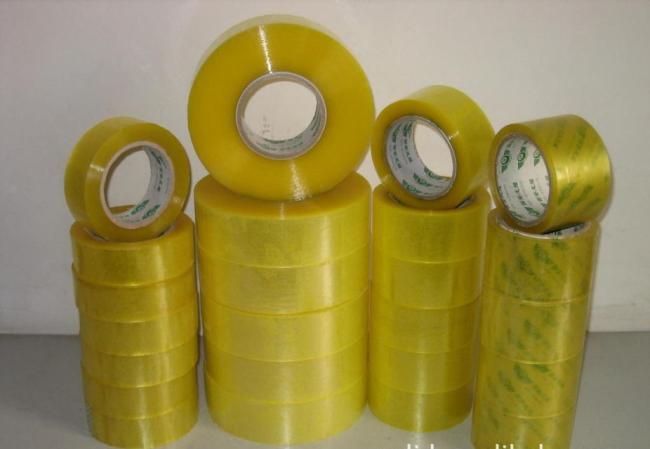

Finished Product of super clear bopp adhesive packing tape jumbo roll rewinding cutting machine :
