180m/Min Paper Jumbo Roll Duplex Slitter Rewinder
Jumbo Paper Roll Slitter Rewinder Machinery
Product Description:
Machine name:
Jumbo Paper Roll Slitter Rewinder Machinery
Function:
suitable for Jumbo Paper Roll Slitter Rewinder Machinery
Features:
1. Automatic EPC System for the raw material unwinding. U can choose 2 types pick up for the material: automatic pick up lifter or independent feeder.
2. Auto tension control system, digital display tension control. Make sure the film surface some.
3. 2 Steps length counter system. The first step for reduce the working speed, the second step for stop the machine steady. That will makes the very accurate rewinding length.
4. Up and down slitting by circular blades.
5. Special design for avert scuffing, to make finished product avoid scratch.
6. Rewinding use the pinch roller, to improve the slitting speed.
7. Welcome OEM design.
Main technical parameters:
| Mater width width | 1000mm /1300mm/1600 mm |
| Max Unwid. diameter | 800 mm |
| Max Rewind diameter | 500 mm |
| Min slitting width | 25 mm |
| Rewinding shaft | Pneumatic slip shaft or air shaft |
| I.D of paper core | 3'' or 6'' |
| Speed | 0-180 m/min |
| Voltage | as customer requirement |

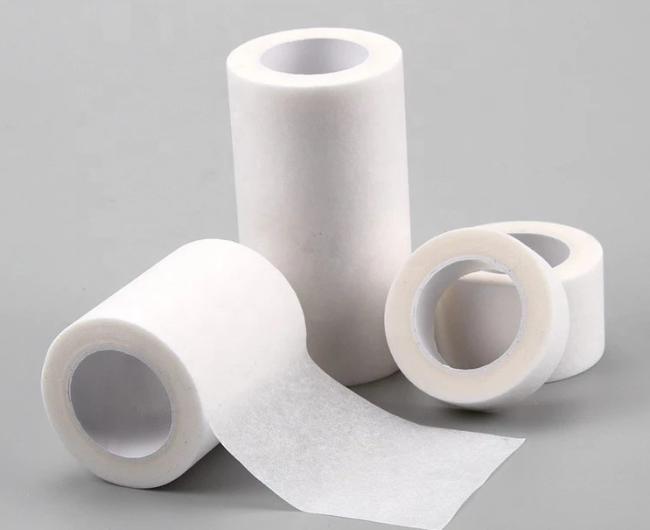

Finish Product:
