Electric Heating Multifunctional Adhesive Opp Tape Coating Machine
Top Excellent Multifunctional Adhesive Opp Tape Coating Machine Used Bopp Tape Coating Machine
Application of Top Excellent Multifunctional Adhesive Opp Tape Coating Machine Used Bopp Tape Coating Machine
Film coating: release film, protective film, scratch-resistant film. Hot stamping film, laser holographic film, aluminized transfer, thermal transfer film, coating and other coating products, production, BOPP,CPP ,PET ,PP ,PVC tape, foam stickers, PE, non-woven, PU coating, Metallic yarn coating.
The paper coating: It’s suitable for the production of paper, white cardboard, duplex cardboard, synthetic paper, PP paper, PET sheet, high light waterproof photo paper, matte photo paper, cast coated photo paper, RC high glossy photo paper, carbonless paper, PP Synthetic Paper and other high-tech information industry paper.
Foil coating: Household Foil, Pharmacy Foil, Cold Forming Medicine Package Foil, Food Soft Packing Foil, Container Foil, Beer Mark, Air-conditioner Foil, Decoration Foil
Attention Please
Since all the Coating Laminating Machines are customized. Please send us the detail Coating Specification or Coating Process Requirement, so that we can offer the exact OEM coating machine. Including the main points as below
1 the base material
2 the width
3 unwinding and rewinding diameter
4 coating material
5 wet coating amount
6 specification of laminating material (if laminating function is needed)
6 heating method
7 coating speed
8 oven length
9 Application of final products
Technical Parameters of Top Excellent Multifunctional Adhesive Opp Tape Coating Machine Used Bopp Tape Coating Machine :
| Model | C1-1 | |
| Raw materials of the machine adapt to | OPP, PET, PVC, PA, CPP film, Aluminum foil and other types of plastic film and paper, etc. | |
| Width of material | 1000mm, 1100mm, 1300mm, 1600mm, 1800mm | |
| Functions | Coating, Laminating | |
| Max. mechanical speed | 150-180m/min | |
| Dry oven length | 12.5-30m, can be customized. | |
| Operation or control system | Operation panel | PLC |
| Mode of unwinding and rewinding |
Single shaft, Or double-station rotary rollers for unwinding |
|
| Max. Diameter of unwinding and rewinding | 600mm-1500mm | |
| Unwinding brake | Magnetic powder brake or air brake | |
| Tension controller | Automatic constant tension control for unwinding, torque motor or variable frequency motor for rewinding | |
| Edge position system | E.P.C or L.P.C automatic edge system, control accuracy≤1mm | |
| Coating modes | Cob-webbing rollers (Anilox roller) coating, Three-roller, steel wire, comma coating, or anti-comma coating, etc. | |
| Heating modes | Electric heating ,Conduction Oil heating ,Steaming heating, etc. | |
| Oven | Arc top-opening door (controlled by pneumatic) | |
| Reflector cover | Stainless steel | |
| Temperature control system | PID intelligent temperature controller, temperature control accuracy≤±2℃ | |

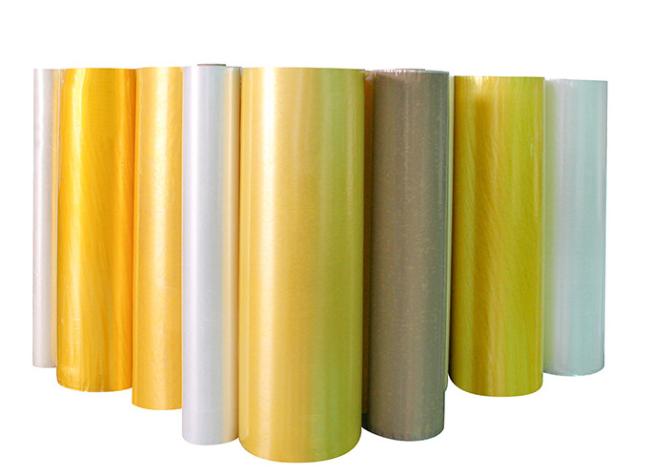

The Finish product:
.
