Double Shaft 3M Tape Cutting Machine/Duct Tape Cutter/Adhesive Tape Auto Cutting Machine
Field of Double Shaft 3M Tape Cutting Machine/Duct Tape Cutter/Adhesive Tape Auto Cutting Machine :
Suitable for cutting various log roll materials such as Insulation tape/polyester tape/ PVC/OPP/PE/Masking tape/Double-side
Technical parameters Double Shaft 3M Tape Cutting Machine/Duct Tape Cutter/Adhesive Tape Auto Cutting Machine :
| Max. cutting diameter | 270mm |
| Max. cutting speed | 35cuts/min |
| Max. length of cut | 1300mm |
| inside diameter of paper core | 32-76.2mm |
| cutting width | 3-1300mm |
| main motor | 5HP |
| blade drive motor | 3HP*6P(servo motor) |
| blade diameter | 150-350mm |
| blade speed | 360-1800rpm |
| weight | 1150kg |
| machine dimension(L*W*H) | 3500*1300*1520mm |
Features:
1. Centralized control panel: all operation controls. For this machine are centralized in a control panel.
2. Control panel provides major functions: material and blade running speed (LED screen display), width counter, number of cuts counter.
3. Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times. Silicon liquid is re-circulated.
4. The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut, cutting pressure can be easily adjusted to suit various types of materials.
5. Cutting circular knife and main shaft power force adopted with AC step-less adjusting motor and available in any rotating direction.
6. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
7. PLC programmable control.

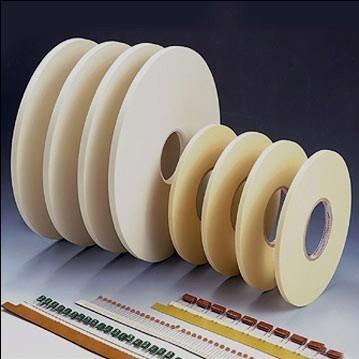

Finish Product:
