Black Frame Irregular 3.2mm CNC Oven Outer Glass Replacement
3.2mm Thickness Black Printed Frame CNC Tempered Glass For Microwave Oven Door
Description of CNC Tempered Glass:
Use CNC to mill the glass shape, edge grinding and through hole required by customer's drawing.
CNC profiling
1. When CNC is used, water injection must be used for continuous flushing to reduce the temperature, reduce the glass cracking and shrinkage caused by the increase of temperature, and the glass powder can be washed away to reduce the scratch probability of glass surface.
2. Ten axis precision engraving machine is adopted to form in one time. There is no need to clamp the grinding head again, and there is no need to carry out glass positioning again. It saves working time and has high positioning accuracy.
| Glass Type | Tempered Glass |
| Thickness | 3-6mm |

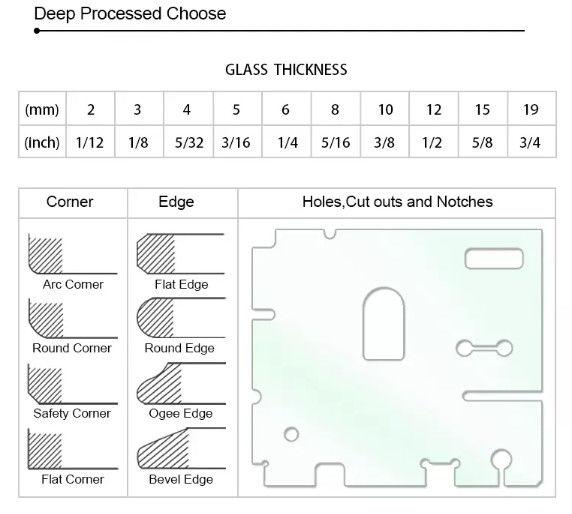

| Glass edging | Flat polish, pencil polish, miter, bevel, O.G. bull nose and etc |
| Process technics | Drill hole, edge polished, tempered, painting |
| Color | Clear, Ultra Clear, Various Green, Blue, Gray, Brown, can be customized |
| Equipment | US made TAMGLASS Continuous Tempering Furnace, Finnishing made TAMGLASS FLAT tempering Furnace, CNC processed center, water-jet machine |
| Application | architecture, glass wall, door, window, bar-protecter, furniture, automobile |
Features of CNC grinding:
CNC only uses one grinding wheel, but integrates the processing cutter wheel of shape, through hole and guide angle together, so that the glass can be placed on the platform without further removal, and all kinds of processing are completed in order to ensure the accuracy and save working time.
Glass shape processing
Glass through hole and edge grinding
Edge grinding of R / C angle on glass
Edge grinding of R / C angle under glass
CNC tempered glass usage area:
Automobile, train, shipping, building, furniture, automatic door, escalator, fireplace, etc. CnC tempered glass is used when strength, thermal resistance and safety are important considerations. CNC tempered glass can be found in shower doors, patio doors, store fixtures and other applications that could be dangerous in the case of human impact.
Tempered glass after CNC process
Tempered glass is a type of safety glass which is prepared to increase the strength of normal glass. The glass undergoes compression and tension through which, the glass breaks down into pieces. This can cause injuries and damage and thus, the toughened glass is used for making door panels, control panel, glass shelves and such things used on regular basis. Tempered glass eliminated the possibility of injury and is constructed under strict supervision to ensure durability and strength.
Main Equipments for manufacturing
| Equipments | Quantity |
| Italian computer control cutting machine | 15 |
| Italian double edging machines | 19 |
| CNC chamfering machine | 8 |
| CNC drilling machine | 5 |
| CNC water jet cutting machine | 4 |
| Edging machines for all kinds of edge | 16 |
| Silk screen printing | 25 |
| UV printing machine | 1 |
| Hot stamping machine | 5 |
| Horizontal Continuous Tempering Furnaces | 3 |
| Co-injection machine | 16 |
| Extruder machine | 5 |
