1. Description

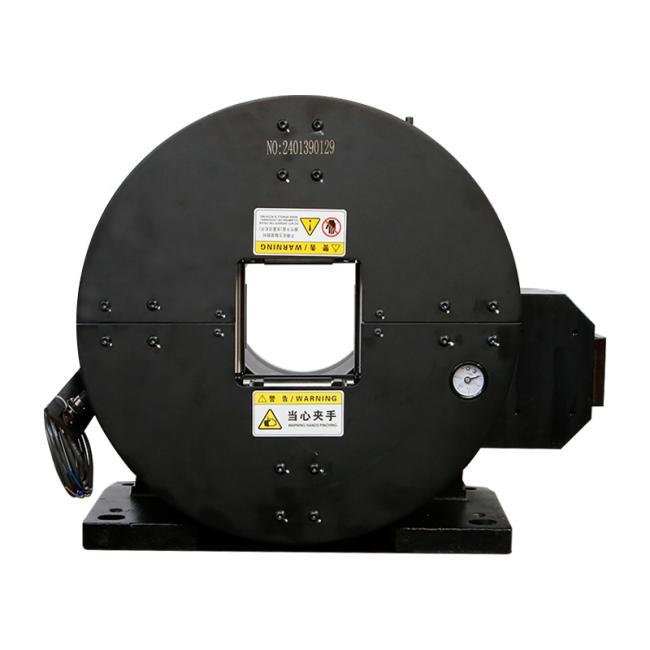

This laser chuck is specially designed for laser pipe cutting equipment. The product itself can be used as an independent rotating spindle, which can quickly clamp and loosen through the side rotating air intake, and can work only after disconnecting the air source.

The simple pneumatic double-action chuck square hole of the tube-sheet integrated machine is suitable for laser tube cutting equipment, rotary cutting round tube, square tube, oval tube, etc.

The product adopts the direct output of the cylinder, which has high mechanical efficiency, small energy loss, large output clamping force and stable clamping force.

The laser chuck has simple structure, small number of components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial size of the chuck is small, and the cost of achieving zero tailings is lower.

This product is designed with a square hole. Compared with the round hole chuck, the size of the square tube is increased and the scope of use is expanded.

  2. Performance Parameters

​ 3. Dimensions

 4. Advantages


5. Company

6. Production Line
