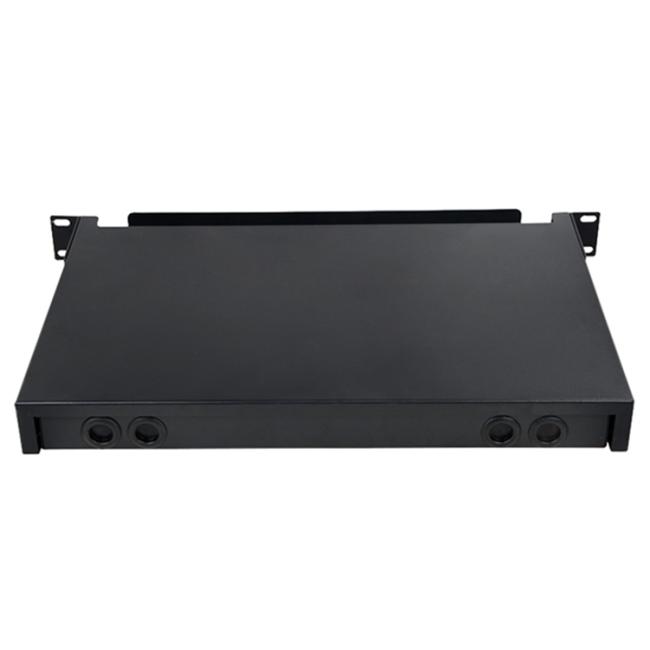

1U Fiber Optic Rack Mount Type Fiber Optic Patch Panel Terminal Box

Description:

The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable.It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use.This plc splitter box meet the National Standard of YD/T925-1997.1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.

Features:

1. The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong adhesive force,artistic and durable;
2. Standard size, light weight and reasonable structure;
3. Splice tray inside changeable;
4. Can be used in 19'', 23'' standard distribution frame;
5. Suitable for ribbon and single fiber;
6. SC/ST/FC/LC ports is available;
6. Front mark on the plate is easy for identification and operation;
7. 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters;
8. Easy for management and operation .

Technique Performance:

1. External size 480x250x1U, 2U,
2. Fiber capacity from 12 cores to 48 cores
3. Insertion loss: <0.3dB
4. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
5. Winding radius ≥40mm
6. Working temperature -25°C~+45°C
7. Atmosphere pressure 70~106Kpa
8. Insulated Resistance 2×10MΩ/500V(DC)W
9. Voltage- resistance:Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.

Application:

1. Widely used in FTTH access network
2. Telecommunication networks
3. CATV networks, LAN Network
4. Data communications networks
5. Local area networks
6. Active device termination
