SM MM Indoor GJFJV Simplex Multimode Fiber Optic Cable
GJFJV Simplex Indoor Fiber Optic Cable Single Mode Multimode
Description:

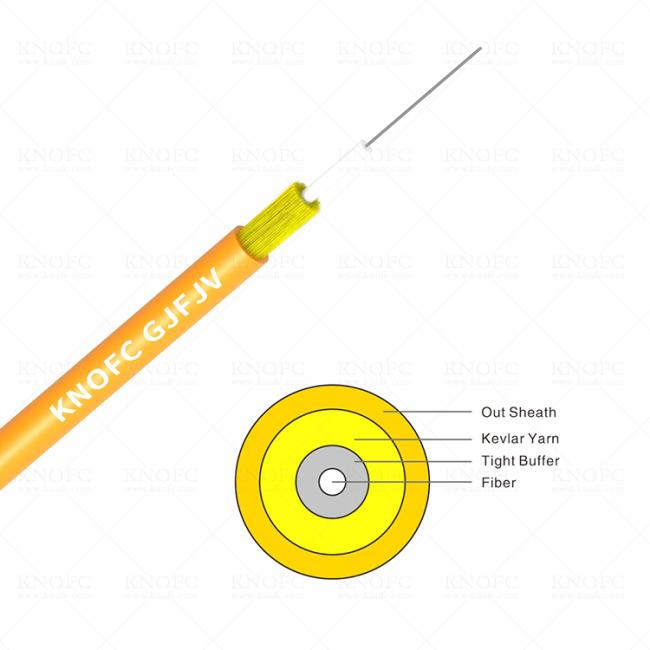

GJFJV Multi-Purpose Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Technical Parameters:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) | Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GJFJV-1 | 2.0 | 4.5 | 80/150 | 300/1000 | 20D/10D | -40~+70 |
| GJFJV-1 | 3.0 | 7.5 |
Mechanical requirements and methods of fiber cable:
| Tensile strength | 10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33% |
| Crush | 2200N/100mm, conform to IEC 794-1-E3 |
| Impact | Conform to IEC 794-1-E4 |
| Repeated bending | Conform to IEC 794-1-E6 |
| Torsion | Conform to IEC 794-1-E7 |
| Flexing | Conform to IEC 794-1-E8 |
| Kink | Conform to IEC 794-1-E10 |
| Cable bend | Conform to IEC 794-1-E11 |
| Vibration | Conform to IEC 794-1 |
| Water penetration | Conform to IEC 794-1-F5B |
| Abrasion | Conform to IEC 794-1-E2 |
| Temperature cycling test | Conform to IEC 794-1-F1 |
| Dielectric strength of outer jacket | Conform to ITU-T Rec.K25 |
Features:
1. Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
2. Good performance of flame-retardant.
3. Low induced attenuation within the operating temperature range.
4. Excellent geometrical dimension of the fiber.
Application:
1. Components for various indoor cables.
2. Suitable for patch cords and pigtails.
3. Suitable for communication equipment served.
