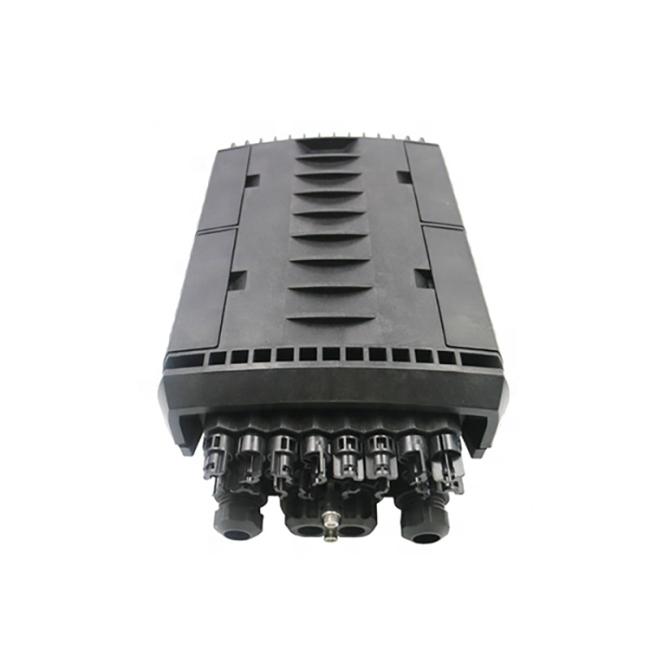

Waterproof FTTH 16 Port Fiber Optic Distribution Box
Cajas Nap de Distribucion Fibra Optica 16 Port FTTH Fibre Distribution Box
Description:
Fiber optical terminal box, termination box is applicable PLC Splitter/ coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH. This fiber optic terminal box applies to the communications room and various network room wall installation or desktop installation. FTTH insert optical fiber terminal splitter box, arc, horizontal type.
Specification:
| GJS-303 Fiber Optical Splice Box | |
| Material | PP+Glass Fiber |
| Size | 380*245*130mm |
| Cable Ports | 1pc un-cut cable port, 2pcs output cable ports, 16pcs drop cable ports |
| Max Capacity | 96FO |
| Splice Tray | 2 pcs 100%PC Material |
| Weight | 4.5~5KG |
| Accessories | Protecting Sleeves, labelling paper, insulation tape, abrasive paper, wall-mount kits, sealing tape, nylon tie, earthing wire, plastic wrench |
| Sealing Way | Silicon Rubbersealing Ring |
| Installation Way | Aerial, wall or pole-Mounting |
Features:
1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations: Ready for wall mount – installation kits provided.
4. Adapter slots used – No screws and tools needed for installing adapters.
5. Ready for splitters: designed space for adding splitters.
6. Space saving! Double-layer design for easier installation and maintenances.
7. Lower layer for splitters and over length fiber storage.
8. Upper layer for splicing, cross-connecting and fiber distribution.
9. Cable fixing units provided for fixing the outdoor optical cable.
10. Protection Level: IP65.
11. Accommodates both cable glands as well as tie-wraps.
12. Lock provided for extra security.
