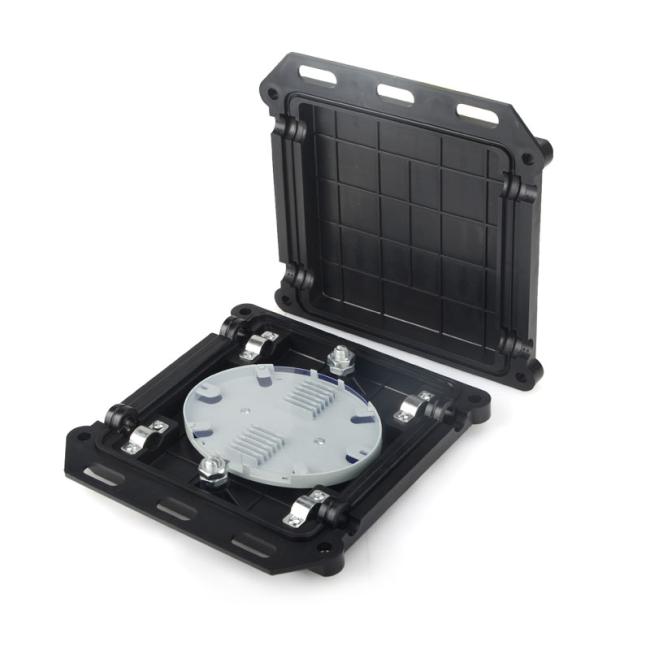

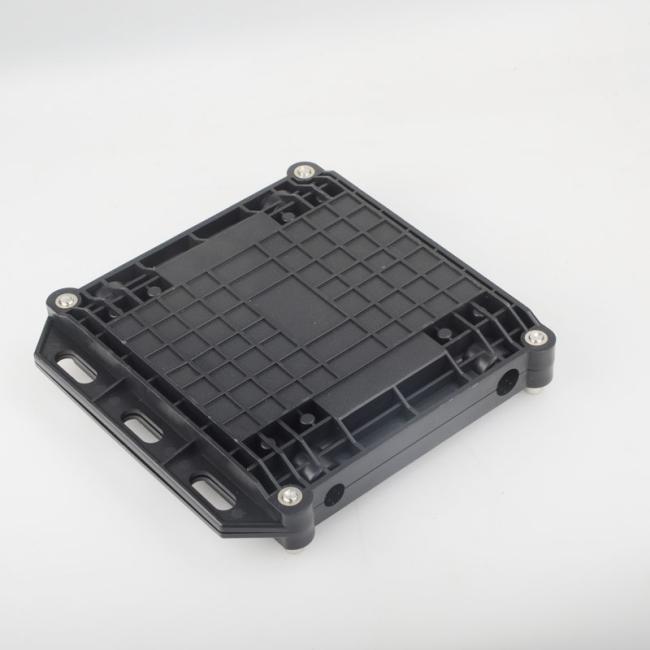

Ftth Mini Square Gjs(04)5C Fiber Optic Joint Splice Closure 12 Core 2 In Out

Description:

Fiber Optical Splice Closure is horizontal with 2 inlet and 2 outlet(4 ports), I's mini size can save much space.The outer shell is made of enhanced PC +ABS engineering plastic, it’s strong and light, can efficaciously prevent the lighting strike, erosion, aging and fire resist, the tray is pulldown, so it’s easy installation, don’t need dismantle other tray, the material of the sealing is silica gel, it can repeatable operation.It is designed especailly for FTTH project.

Features:

1, Aging resistance: with good stability of heat, thermal radiation, air, ozone and so on
2, Corrosion resistance: strong resistance against acid, salt, oxidants and so on
3, Sealing Technology: The reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance
4, Close device: no need special tools for easy installation and re open
5, Grouping function: 2 inlet 2 outlet at 2 sides can meet most requirements
6, Splice tray: using cascading structure, no need to take other splice tray when do operation

Application:

• Sutable for bunchy fibers.
• Aerial ,wall-mounting.
• FTTH optical fiber distribution.

Specification:
