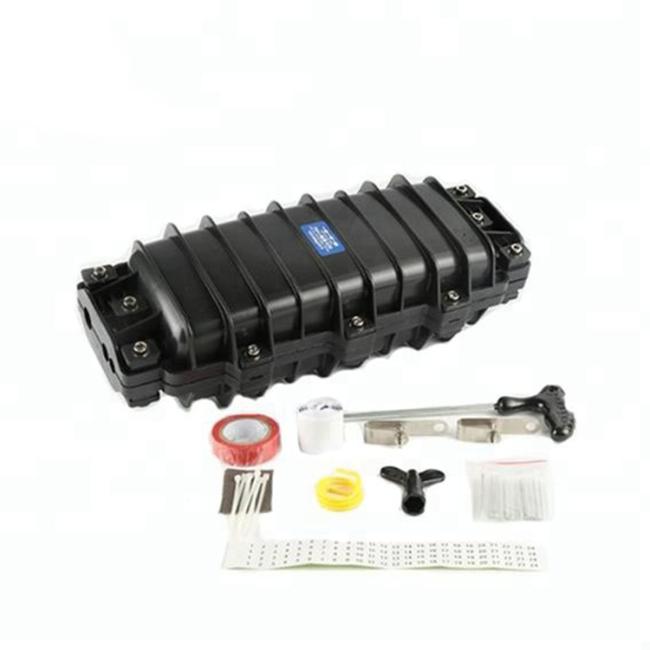

Wall mount 24-96 Core Optical Fiber Cable Joint Closure
Optical Fiber Cable Joint Closure 24-96 Core Fiber Optic Splice Closure
Description:
Dome Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, duct, or for pole mounting applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.
Features:
1. Easy to re-enter
2. Cable entry/exit ports
3. Pressure testing valve and earth deriving device
4. Intergrated seal, air tight and water proof
5. Ideal for cable repair
6. Can be used in through, branch or mid span splice locations
7. Sitable for aerial, underground duct or direct burial applications
Application:
- Sutable for bunchy fibers.
- Aerial ,wall-mounting.
- FTTH optical fiber distribution.
Specification:
| Outside dimension: | 430x180x125(mm) |
| Cable ports: | 6 ports |
| Core capacity per tray: | 12 or 24 |
| Material: | PC |
| Cable diameter: | Max φ20 |
| Max.Capacity (bunchy fiber): | 24-96 |
| Material: | PC |
