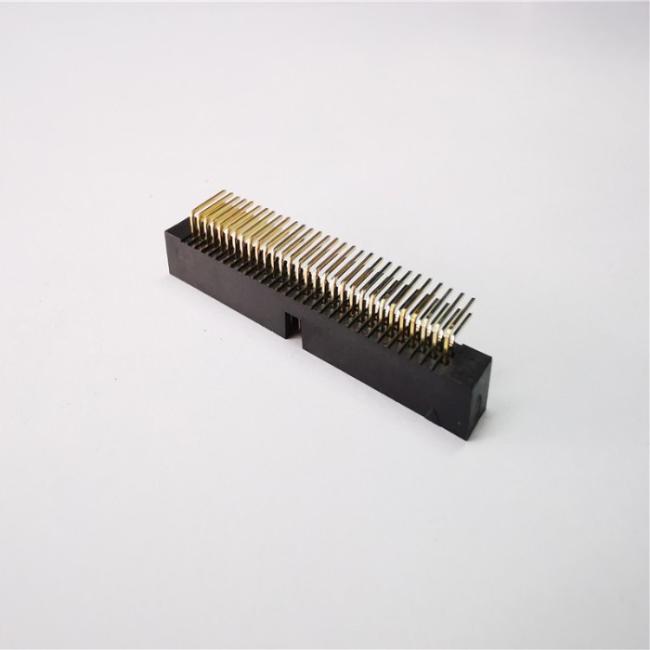

2.0MM Pitch 2 x 40P Box Header Right Angle Dip Connector

Price Negotiable
Price: 100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09
MOQ: 100 Pieces
Delivery Time: 7 Days
Brand: DZ
Product Description

2.0MM Pitch 2 X 40P Box Header Right Angle Dip Connector

# Right Angle Dip Connector Properties

2.0MM Pitch 2 X 40P Box Header Right Angle Dip Connecto

1.MATERIAL:

Plastic Material:

LCP

Contact Material:

Phosphor Brozen

Contact Plating:

Gold Plating

2.MECHANICAL PERFORMANCE



INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

3 A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN





FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.

Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
