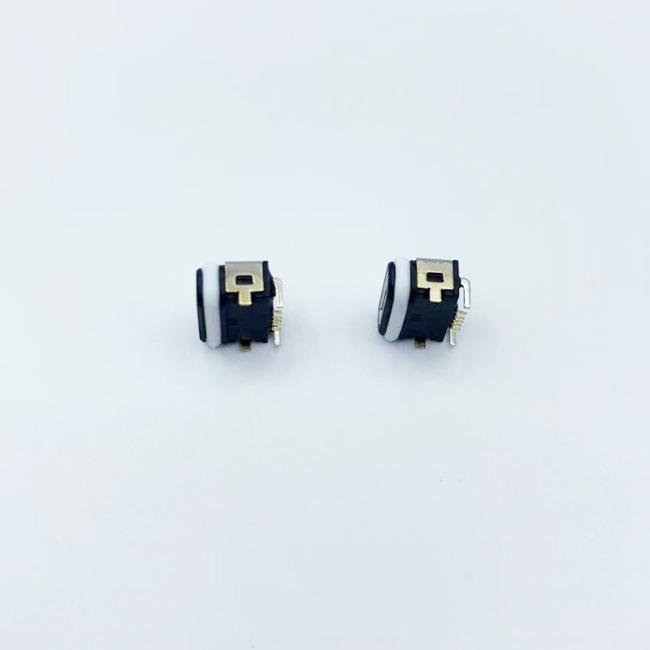

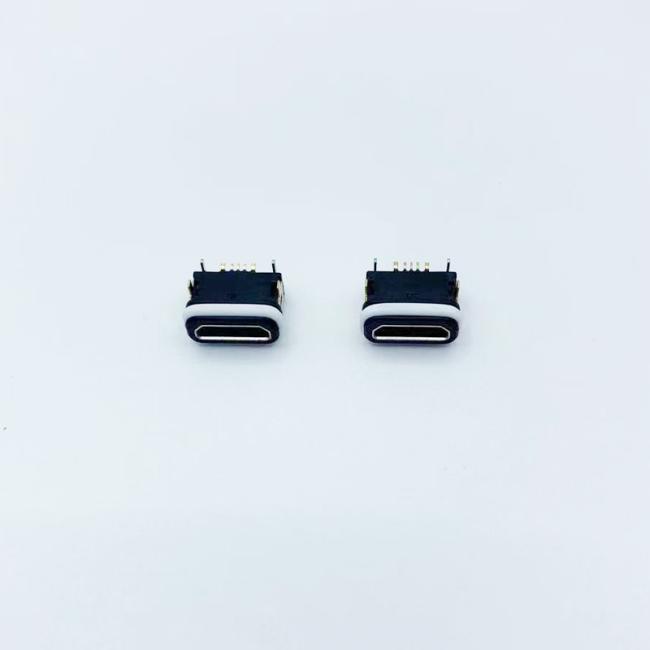

Micro USB 5P Female B Type DIP Connector Waterproof IP67 Level

Price Negotiable
Price: 100 - 999 Pieces = $0.42, 1000 - 4999 Pieces = $0.40, 5000 - 9999 Pieces = $0.38, ≥ 10000 Pieces = $0.36
MOQ: 100 Pieces
Delivery Time: 7 Days
Brand: DZ
Product Description

Micro USB 5P Female B Type DIP Connector Waterproof IP67 Level

# IP67 Level DIP Connector Properties


1.ELECTRIAL CHARACTERISTICS:
1.1: RATING: 3A(PIN1&PIN5), 0.5A(PN2&3&4);
1.2: CONTACT RESISTANCE: 30mΩ MAX(INITIAL);
1.3: DIELECTRIC WITHSATNDING: 500V AC MIN;
1.4: INSULATION RESISTANCE: 1000MΩ MIN;
2.DURABILITY: 10,000 CYCLES MIN;
3.INSERTION FORCE: 3.5KGF(35N) Max;
4.EXTRACTION FORCE: 0.8KGF(8N)Min;
5.WATERPROOFNESS: THIS PRODUCT IS BASED ON IPX7(1M, 30MIN);
6.PLUG INTERFACE DIMENSIONS COMFORM TO USB 2.0 SPEC;
7.PACKAGE: TAPE&REEL;
8.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
9.MATERIAL:
9-1.HOUSING: HIGH TEMPERATURE THERMOPLASTIC;
9-2.TERMINAL: COPPER ALLOY, 0.15T, GOLD PLATED ON CONTACT AREA;
9-3.INNER SHELL: COPPER ALLOY OR STAINLESS STEEL, NICKLE PLATED;
9-4. OVAL RING: RUBBER
