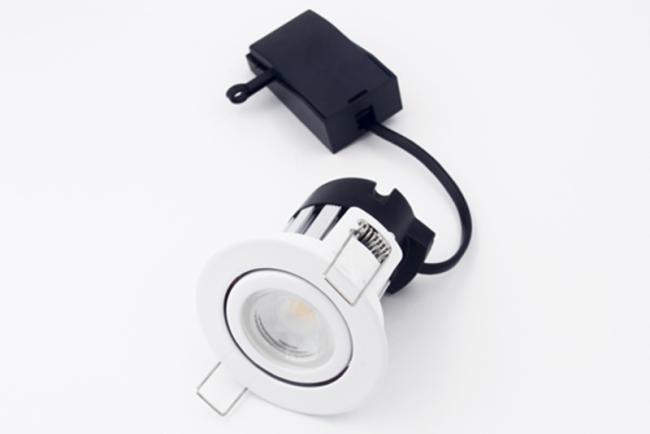

70mm Cut Out Downlights 600lm Fire Rated Downlight With Connection Box
Cutout 70mm Integrated 8W LED Downlight With Quick Fit Connection Box
An integrated downlight is a fitting with an installed LED lamp as part of the fitting. Integrated downlights offer longer life spans than LED lamps. Integrated Downlights are now extremely popular in all rooms of the home or office.
Integral LED Downlights are designed and built using leading LED technologies and the best components to offer a range of solutions for both commercial and residential applications. Integral LED Downlights provide the light levels you require and an excellent saving when compared to traditional halogen or incandescent equivalent products.
TECHNICAL DATA
| Voltage | 220~240V | Wattage | 10W LED |
| COB | Luminus | Lumen | >880lm |
| Beam Angle | 40 | CRI | Ra>80 (Ra> 90 available) |
| Color Temperature | 2700K/3000K/4000K/5000K | Driver | dimmable/nondimmable |
| PF | >0.9 | Dimmable | Triac/1-10V/Dali |
| IP Rating | IP44 | Life span | 40,000 hrs |
| Guarantee | 5 years |
DIMENSION
| Specification | 100mm | Height | 56mm |
| Cut out | 70mm |
COMPONENT
| Material | Die-cast aluminum | Color | White, Brush Nickel,Brass Black,Chrome |
Features:
1. 360 degree rotatoble/adjustable/titable
2. Isolation covered directly
3. 57mm slim deisgn;
4. loop-in/loop-out driver with push-fit connector
5. cutout 70mm
6. Smart Spring for easy installation
| May I have a sample order for LED Downlight ? |
| Yes, sample order is available. |
| What about the lead time? |
| The lead time of LED Downlight sample is 5-7 days, The delivery time of regular order is 30-45 days. |
| Do you have any MOQ limit for Downlight order? |
| Yes, the MOQ limit is according to different items. Exact MOQ will be showed in quotation. |
