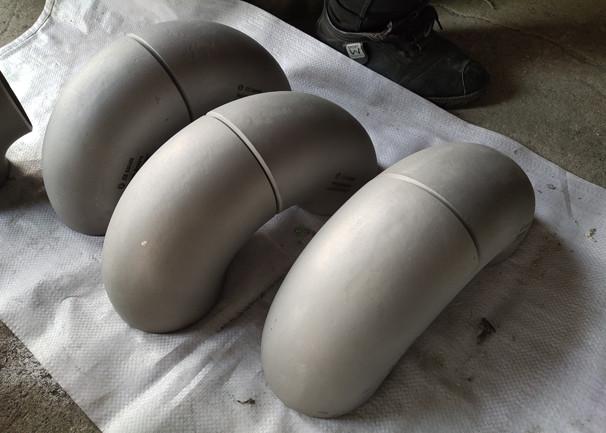

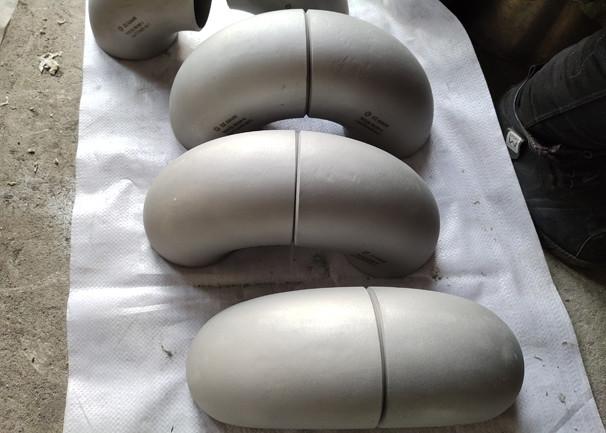

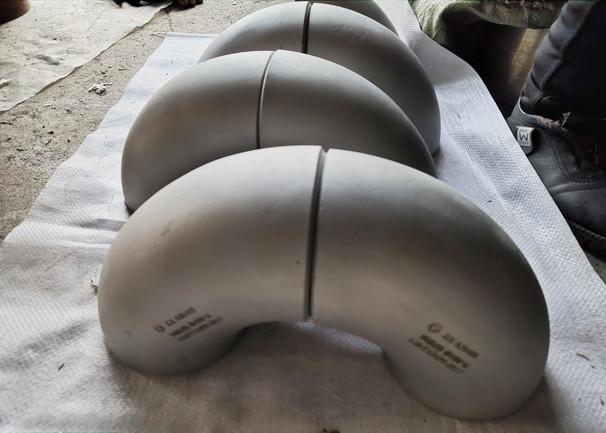

Welding 317L 2205 LR DIN Stainless Steel Bends Elbows
2205180 LR Seamless Pipe Fittings Elbow Stainless Steel For Oil And Gas Pipelines
The yield strength of 2205 duplex stainless steel is more than twice that of ordinary austenitic stainless steel. This feature enables designers to reduce weight when designing products, making this alloy more cost-effective than 316 and 317L. This alloy is especially suitable for the temperature range of -50°F/+600°F. For applications beyond this temperature range, this alloy can also be considered, but there are some limitations, especially when applied to welded structures.
The high strength and corrosion resistance of 2205 duplex steel make it have high corrosion fatigue strength. Processing equipment is susceptible to corrosive environments and loading cycles, and the characteristics of 2205 are very suitable for such applications.
product description
| Description | Customized buttwelding pipe fittings 90 degree elbow |
| Type | Customized |
| Application | Industry system |
| Processing | forged |
| Material | stainless steel (304/316/304L) |
| Weight Ranges | 0.05-10kg |
| Tolernace | Controlled by ISO 8006 CT4-6 |
| Design Support | Pro-E, UG,SolidWorks,AutoCad, PDF |
| Quality Control | Material, Dimension,Performance,inside defects,Balance test |
| Standard | ASTM,DIN,JIS,ISO,GB standards |
| Head Code | round |
| Surface | Black painting or color painting for carbon steel and alloy steel fittings. |
| Usage | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
Declaration:
Products shown herein are made to the requirements of specific customers and are illustrative of the types of manufacturing capabilities available within Densen group of companies.
Our policy is that none of these products will be sold to 3rd parties without written consent of the customers to whom the tooling, design and specifications belong.
We are a factory specializing in the production of various large and small carbon steel pipe fittings;
Steel pipes, elbows, tees, reducers, joints and more;
Standard: ASTM, DIN, GB, JIS or other standards;
Other requirements customized please send your inquiry
Duplex stainless steel 2205(00Cr22Ni5Mo3N,S31803)Chemical composition%
| Grade | C ≤ | Mn ≤ | P ≤ | S ≤ | Si ≤ | Ni | Cr | Mo | N |
| 2205 | 0.030 | 2.0 | 0.030 | 0.020 | 1.0 | 4.5-6.5 | 21-23 | 2.5-3.5 | 0.08-0.2 |
uplex stainless stee l2205(00Cr22Ni5Mo3N,S31803)Mechanical properties
| Grade | Temperature/state | Yield Strength σb≥(ksi) |
tensile strength σ0.2≥(ksi) |
Elongation δ gauge length2in or 50mm(or4D),≥,% |
| 2205Board | 70oC/annealing | 75 | 105 | 35 |
| 2205Board | 200oC/annealing | 50 | 90 | |
| 2205Board | 400oC/annealing | 45 | 80 | |
| 2205Board | 600oC/annealing | 40 | 79 |
