Main Steam Blowing Target Plate Seat, Target Plate Holder, Target Plate Axis

1. Introduction to the target board

The target plate is a component used to detect the impurities in the steam. It is a necessary equipment for the blowpipe purge link, and it is used together with the blowpipe muffler.

2. Target plate device structure

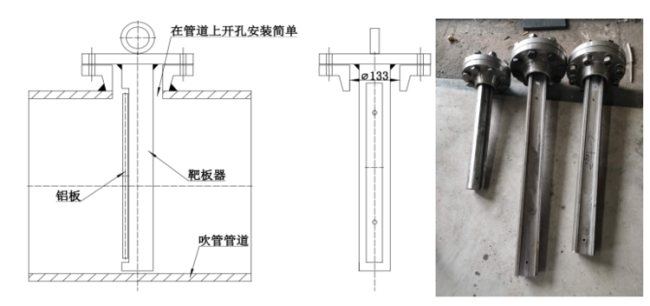

1. Straight axis type target plate device: This type of straight axis type target plate device is used to disassemble the flange and take out to replace the aluminum target plate

.

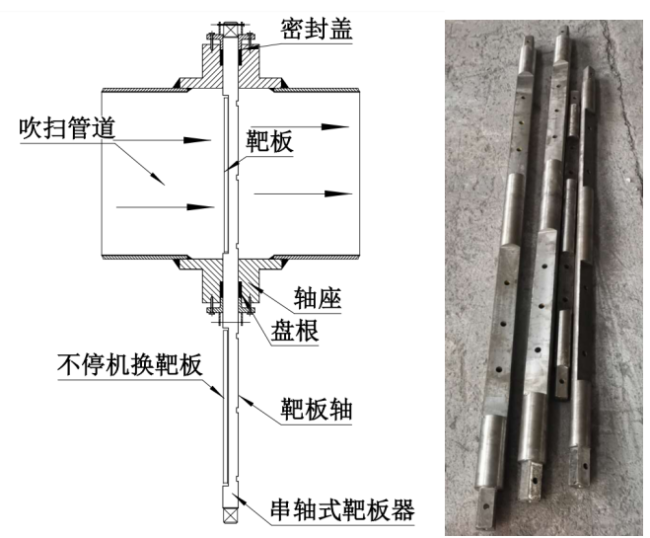

2. Axis-moving target plate device: The shaft-moving target plate device can be installed horizontally. The advantage of the shaft-moving target plate device is that it is more convenient to change the target plate and can freely control the test target time, which can satisfy the pressure-regulating blowpipe and the pressure-reducing blowpipe.

Third, the selection of target board components

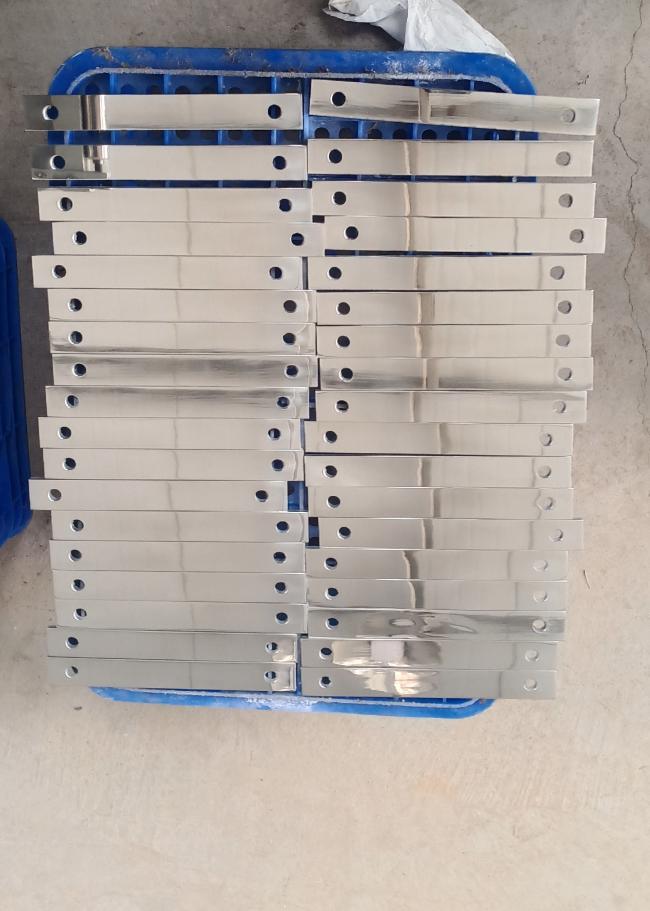

1. Target plate: aluminum target plate is generally used for the target plate, the main steam target plate is generally selected with a width of 25-35mm, the length of the target plate is subject to the inner diameter of the blow pipe, and the thickness of the target plate is 6-10mm.
