DC 24 Volt High Pressure Electric Water Pump For BEV Bus PHEV Vehicles
Brushless DC motor centrifugal pump DC 24V 300W heavy duty electric water pump for electric bus, truck battery and controller cooling with PWM
OWP-7000KL67 300W heavy duty electric water pump for electric bus/truck battery and controller cooling system
Applications:
1: electric vehicles cooling system
2: engine,battery,controller,AC coolant circulation
3: industrial cooling system
4: BEV bus,PHEV vehicles
| No. | Items | Parameter |
| 1 |
Medium temperature range |
Max 40% Glycol -40℃～85℃ |

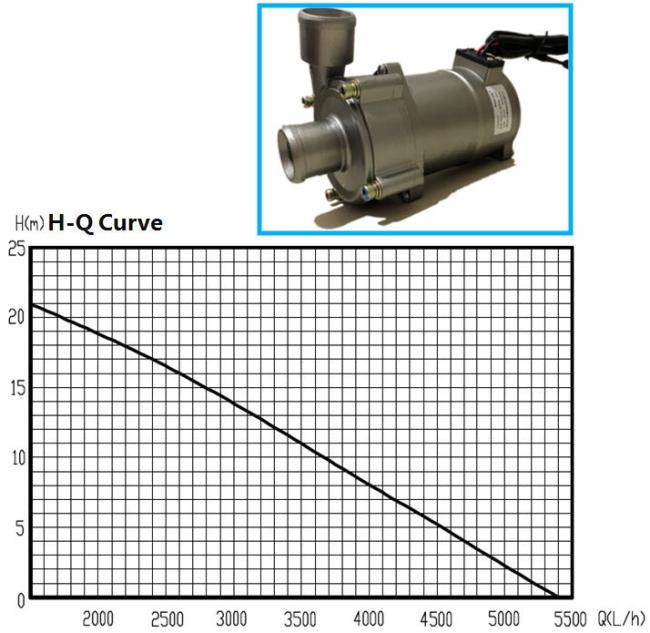

| 2 | Flow & Head | Flow Q=2000L/H, Head H≥18M |
| 3 | Noise | ≤65dB |
| 4 | Rated Voltage | DC24V |
| 5 | Operating Voltage | DC18～32V |
| 6 | Max Current | ≤13A |
| 7 | Power | 300W±10W |
| 8 | IP Grade | IP67 |
| 9 | Service life | ≥20000h |
| 10 | Net Weight | 2.2kg |
Advantages of our electric water pump
*Brushless Motor assembly efficiency max reach to 85%(normal level 70%),controller driving efficiency max reach to 97%
*Shielded brushless motor,long service life ,low power consumption,compact size, high reliability
*Strong pump development capability , professional Ansys Fluent simulation calculation offering high-efficiency customized development.
*Sinusoidal wave controlling circuit ,EMC proved, Automotive grade electronic components .
*Automatically detect no-load/semi-load state and protective self stop, automatically detect the plugging state and protective self stop, detection overload and protective deceleration operation, positive and negative pole reverse protection function.
*Shielded - type inner - rotor structure , IP grade IP67 , insulation grade F.
Structure of electric water pump
Simulation calculation of hydraulic design of electric pump
Electric water pump design principle
Electric water pump design verification - electromagnetic theory design verification
Design verification of electric pump product design - test verification
