PTP33B-6KM6/0 Absolute And Gauge Pressure Ceraphant PTP33B

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: On request

Brand: Endress Hauser

Product Description

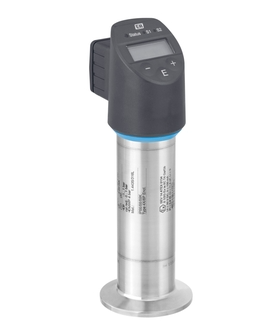

PTP33B-6KM6/0 Absolute And Gauge Pressure Ceraphant PTP33B

Reference Accuracy	Standard 0.5%
Calibration; Unit	Sensor range; mbar/bar
Output	PNP + 4-20mA, IO-Link, 4-wire

Field of application

The Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steal housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.

Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.

Process connections: Hygienic connections, threads
Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h
Process pressure: 400mbar to +40bar (6 to +600psi)
Accuracy: up to ±0.3%
