China G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable for sale

G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable

Price Negotiable

Price: Negotiation

MOQ: 1000 Meters

Delivery Time: 7~15Work Day

Brand: OEM/ ODM/ YUEXIANKE

Product Description

Outdoor 4 Core FTTH Drop Cable G657A2 Self-supporting Aerial GJYXFDCH Fiber Optic Cable

Product Description

Application:

FTTH & precast pigtail

Product description:

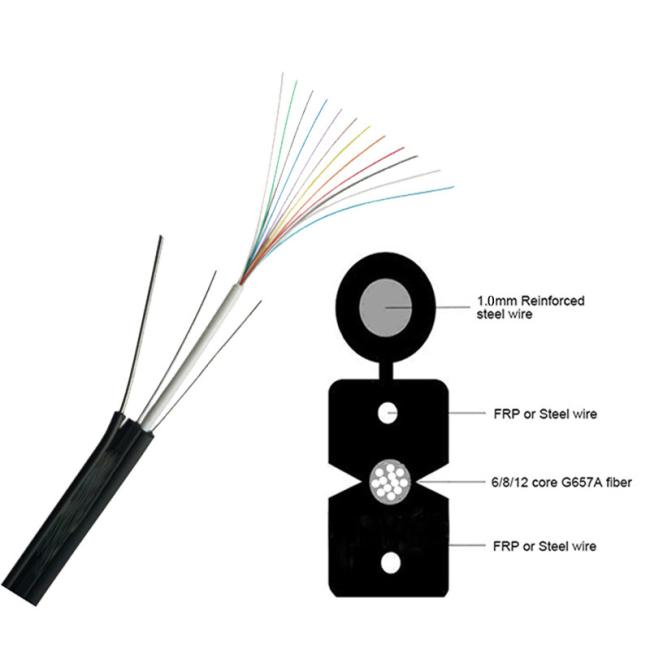

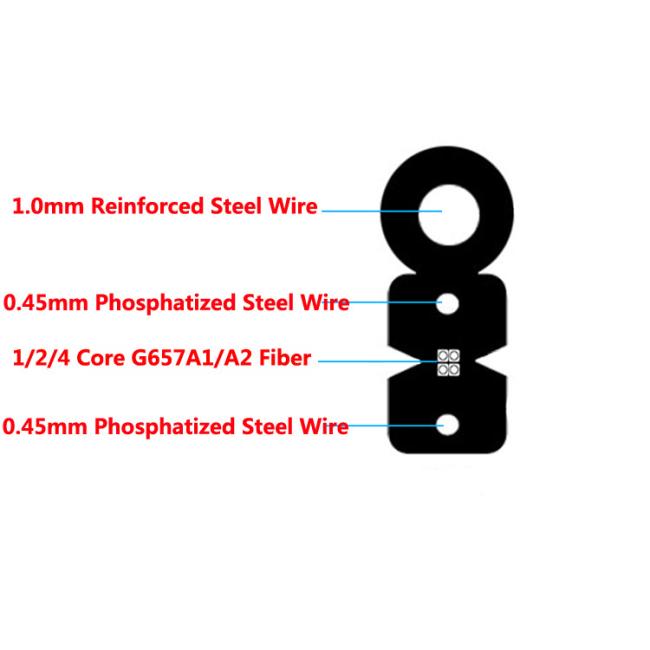

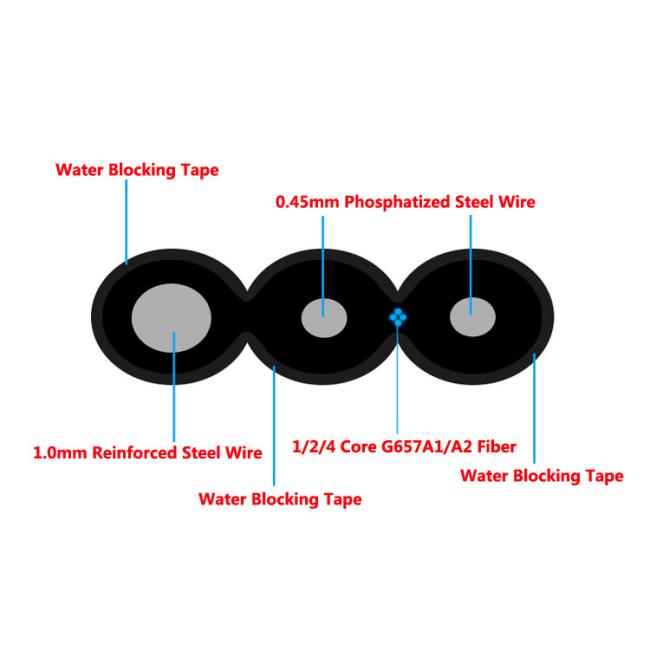

◇Optical fiber(s) in the center, dual paralleled steel wires (or FRP) as strength member, extruded LSZH sheath.

◇ The cable is small size and light with flute design which make cable easily separate the fibers by hands and convenient to be installed.

Operating temperature:

- 40℃~ +60℃


			G657A2 Technical parameters

			Item

			Standard

			Unit

			Optical attenuation

			1310nm

			≤0.35

			dB/km

			1383nm

			≤0.33

			dB/km

			1550nm

			≤0.21

			dB/km

			1625nm

			≤0.24

			dB/km

			Attenuation wavelength characteristic 1285nm～1330nm VS 1310nm

			1360nm～1410nm VS 1383nm

			1225nm～1575nm VS 1550nm

			≤0.03

			≤0.05

			≤0.02

			dB/km

			Dispersion

			1288nm～1339nm

			|D|≤3.4

			ps/(nm·km)

			1271nm～1360nm

			|D|≤5.3

			ps/(nm·km)

			1550nm

			≤17.5

			ps/(nm·km)

			Zero-dispersion wavelength

			1300～1324

			nm

			Zero-dispersion slope

			≤0.092

			ps/(nm2•km)

			PMD

			PMD (single fiber)

			≤0.15

			ps/√km

			PMDQ (links)

			≤0.08

			ps/√km

			Cladding diameter

			125±0.7

			μm

			Cladding non-circularity

			≤0.8

			%

			Core-cladding concentricity error

			≤0.5

			μm

			Coating diameter

			242±7

			μm

			Cladding/coating concentricity error

			≤10.0

			μm

			Cut-off wavelength

			1.18～1.33

			μm

			Macrobend attenuation

			Radius

			15

			10

			7.5

			mm

			Cycle number

			10

			1

			1

			1550nm

			0.03

			0.10

			0.5

			dB

			1625nm

			0.1

			0.2

			1.0

			Bending radius

			≥5

			m

			Tensile strength

			Wilbur probability level

			≥3.14 (15%)

			Gpa

			≥3.80 (50%)

			Dynamic fatigue parameters

			≥20

			nd

			Fiber proof-tested

			1.3≤Fmin-max ≤8.9

			N

			1.0≤Fave≤5.0

			N

			Temperature cycling test: (-60℃～85℃,3 cycles)

			Attenuation @1310nm & @1550nm

			≤0.05

			dB/km

			Watersoak test: (23℃ for 30 days)

			≤0.05

			dB/km

			Damp heat test: (85℃,85 for 30 days)

			≤0.05

			dB/km

			thermal aging test

			(85℃ for 30 days)

			≤0.05

			dB/km

			Warm water test

			(60℃ for 15 days)

			≤0.05

			dB/km

Packing & Shipping

FAQ

Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.

Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!

Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.

Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.

Q4:Time delivery?
1*20'GP: Within 10 days after receive deposit.
1*40'GP: Within 12 days after receive deposit.
1*40'HQ: Within 15 days after receive deposit.
For Stock items,only 2 days for delivery time.

Q5: Payment term?
T/T, , Money Gram, Paypal, etc.
