GYTA53 Armoured Direct Outdoor Fiber Optic Cable
Price:
USD0.70-USD15/set
MOQ:
5km
Delivery Time:
5-20 days
Brand:
WRC
Product Description
Description: GYTA53 armoured direct fiber optical cable
1.The fibers is 250µm, are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound.
2.A steel wire, sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Products features
|
Fiber Num.
|
Outer diameter (mm)
|
Weight (kg/km)
|
Tension (N)
|
Crash loading(N/100mm)
|
||
|
Short term
|
Long term
|
Short term
|
Long term
|
|||
|
2-30
|
9.5
|
86
|
≥1500
|
≥600
|
≥1000
|
≥300
|
|
32-60
|
10.2
|
99
|
||||
|
62-72
|
10.9
|
123
|
||||
|
74-84
|
12.2
|
148
|
||||
|
86-96
|
12.2
|
148
|
||||
|
98-120
|
14.0
|
183
|
||||
|
122-144
|
14.5
|
220 |
||||
|
146-216
|
16.1
|
229
|
||||
|
218-300
|
18.5
|
290
|
||||

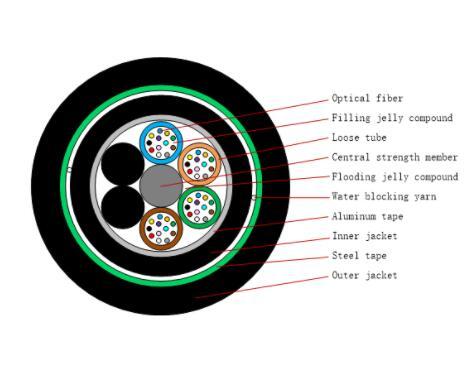

Drawings GYTA53 armoured direct fiber optical cable
