G652D 12F 100m Span Aerial Duct ADSS Fiber Optic Cable
Price:
USD
MOQ:
1KM
Delivery Time:
10~20 DAYS
Brand:
Weiroct
Product Description
ADSS G652D Fiber Optical Cable 12F 100m Span Aerial And Duct
Product Description:

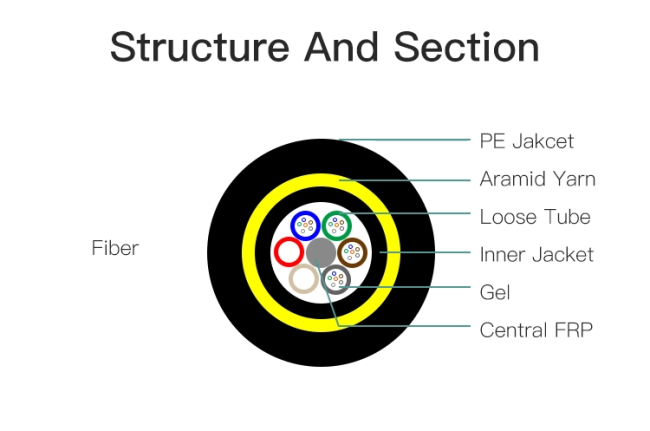

ADSS armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for high-density fibers is expected.
Characteristics:
MODEL: OFC-ADSS
Fiber: SM G652D
Strengthen: Aramid Yarn
Jacket Diameter: 9.5mm
Jacket Material: LLDPE
Cable Length: 3Km/Drum
Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature: -20℃ to +60℃
