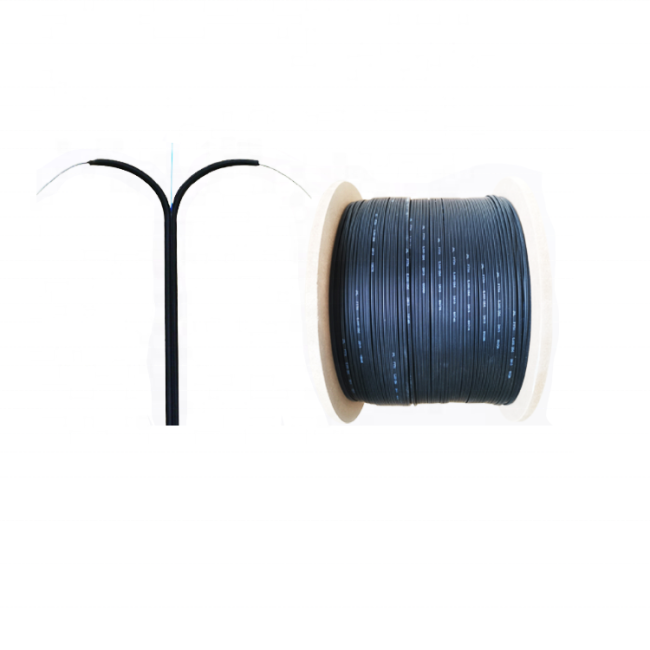

G657A FRP FTTH Drop Cable 2 Core Single Mode Fiber Optic Cable
Price:
USD
MOQ:
1KM
Delivery Time:
5-7 Days
Brand:
Weiroct
Product Description
2cores Single Mode G657A FRP Strength Member Indoor Single Mode Fiber Optic Cable FTTH Drop Cable
Characteristics:
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability.
3. Novel flute design, easily strip and splice, simplify the installation and maintenance
Geometrical Characteristics:
| Fiber Core | 1 | 2 | 1 | 4 |
| Cable Dimension(mm) | 2.0×3.0 | 2.0×3.4 | 2.0×3.8 | 2.0×4.0 |
| Cable Weight(kg/km) | 8 | 8.0 | 9 | 10 |
Mechanical Characteristics:
| Max Load (N) | Long Term | 30 | 30 | 30 | 30 |
| Short Term | 60 | 60 | 60 | 60 | |
| Bending Radius(CM) | Dynamic | 30 | 30 | 30 | 30 |
| Static | 15 | 15 | 15 | 15 |
Fiber:
| Fiber Type(core/cladding dimension) | G657 |
Transmission Characteristics:
| SMF | |
| Wavelength | 1310/1550(nm) |
| Max Attenuation (dB/km) | 0.45/0.30 |
| AVG Attenuation (dB/km) | 0.40/0.25 |
Environmental Characteristics:
| Storage Operating Temperature | -20℃~+60℃ |
