40KW OCPP CCS Chademo RFID 132A Wall Box EV Charger

Price Negotiable
Price: 8500$
MOQ: 1 Unit
Delivery Time: 11-14 weeks
Brand: ARK
Product Description
Product Introduction

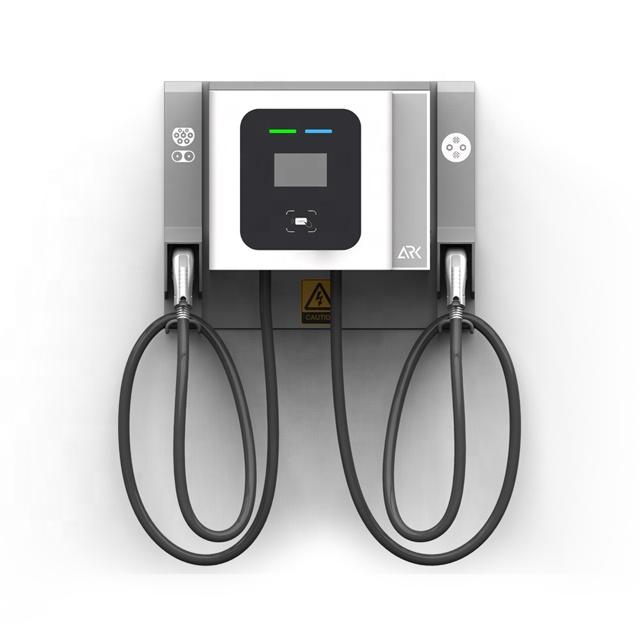

New Design 40kw EV Commercial DC Charger With Intelligent Network OCPP With CCS/CHADEMO Outlets And RFID



ARK 380V 400V 480V OUTPUT 0-550V 30kW CHAdeMO wall mounted EV DC Fast charger for i3 Fast Charging is the most advanced Electric Vehicle Charging Station currently available. Its modular design construction allows for free configuration of power modules and electrical components, application of a Ethernet/WiFi/3g/4g communication or RFID card reader.
This series chargers can be operated stably in various application scenarios and envrionments, even if low or high temperatures.


Product Parameters


Specification

Model

EF040CJ

Structure

Application scenes

Parking lot/Public charging station

Housing material

Metal case

Dimension

600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)

Installation method

Wall-mount, Pedestal-mount(optional)

Cable routing

Bottom inlet, bottom outlet wiring

Weight

95kgs, 120kgs (pedestal mount)

Cable length

4m

Cable outlets

2, single charging

Electrical specifications

Input voltage

400Vac +/-10%, 3-phase

Input frequency

50Hz/60Hz

Rated power

40kW

Output voltage

150 – 750V DC, constant output @ above 300V

Output current

0 - 66A / 0 - 132A

Efficiency

≥ 94%

Power factor

≥ 0.99

Function design

User interface

RFID, 7” touch screen, Emergency button

Charging standards

IEC 61851, CHAdeMO

Communication

CAN, PLC, OCPP 1.6 JSON

Environment condition

Application place

Indoor/Outdoor

Working temperature

-20 ° C ~ +55 ° C

Working humidity

5% ~ 95% without condensation

Altitude

<2000m

Protection grade

IP54

Cooling

Forced-air

MTBF

100,000 hours

Safety standards

IEC 61851-1, IEC 61851-22, IEC 61851-23, IEC 61851-24, DIN 70121, IEC 15118-3

Security design

Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection
