M12 Waterproof Connector Straight M12 A Coding 5pins Male Molding Connector

Product description

M12 molded cordsets have a yellow connector head with gray PVC cable

the Riogal M12 molded cables are made from yellow PUR or PVC which is oil resistant

They are most ideally useful for applications with actuators and sensors. Sometimes referred to as Micro DC or MDC

M12 cordsets have 60V or 240V ratings, with 22 AWG wire.

Quick details

1. M12 molding connector 5pins male gender
2. 2, 3, 4, 5, 8 poles per connector are available
3. PUR/PVC cable accessories available upon customer requesting
4. Operating voltage 300V-DC/ 250V-AC/ 60V/ 30V, Rated current 4A/ 2A
5. UL94 V-0 PA66+GF plastic Housing / Metal shell
6. Degree of protection IP67

7. Temperature will from -40° to +80°

8. Connector locking system is bolted

9. Wire gauge(mm) is 0.34mm²

10. Wire gage(AWG) 22

Electrical values

Rated current : 4 A

Rated voltage  : 60V

Rated impulse voltage :1500 V

Pollution degree :3

Contact resistance:≤10mΩ

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

Insolution resistance:≧100mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles

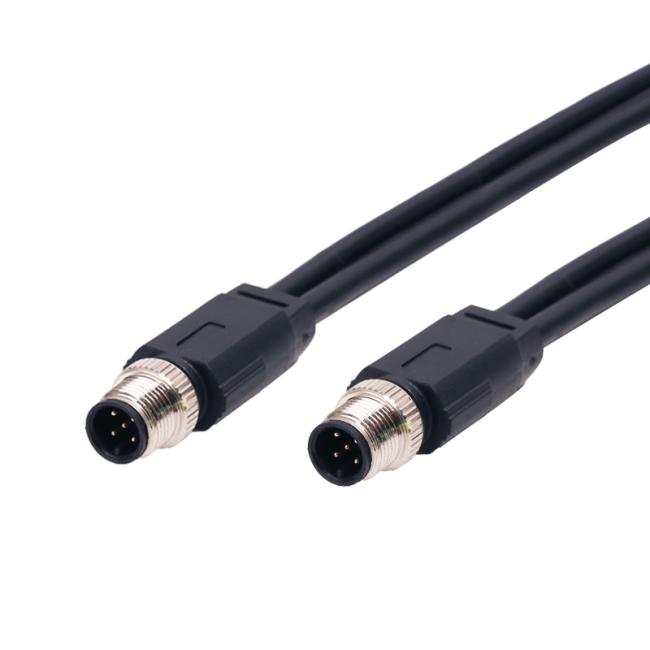

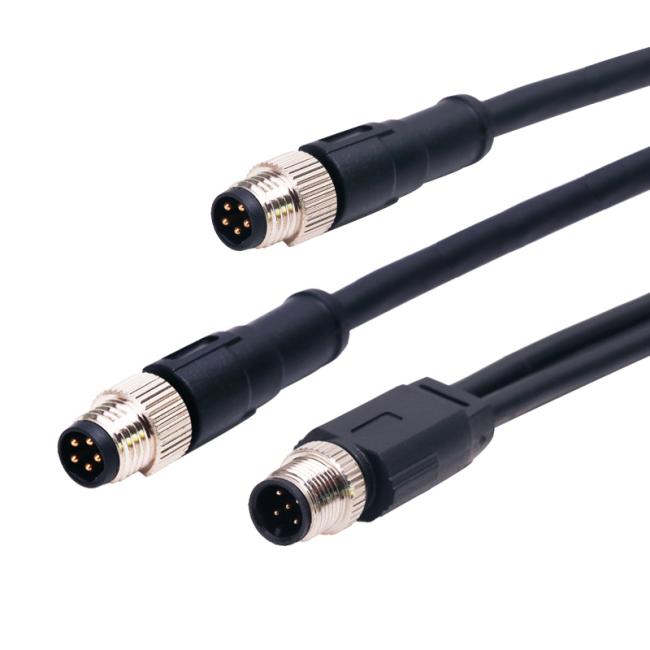

Product photos

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

M12 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

FAQ

1. Q: What type waterproof connector do you have?
We have a lot of types connector,most of our connector is customized.We foucs on LED Waterproof connector, Assembly waterproof connector,Over-mold waterproof connector,Sensor connector etc, also customized according to your requirements.

2. Q: How to buy your products?
* Confirm the type of connector

* Confirm the Number of Connector
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.

Rigoal-----Your Best Connection!
