China Right Angle Shielded M8 Waterproof Connector 3 Pins Male Molded Cable for sale

Right Angle Shielded M8 Waterproof Connector 3 Pins Male Molded Cable

Price Negotiable
Price: negotiable
MOQ: 100
Delivery Time: 14
Brand: RIGOAL
Product Description

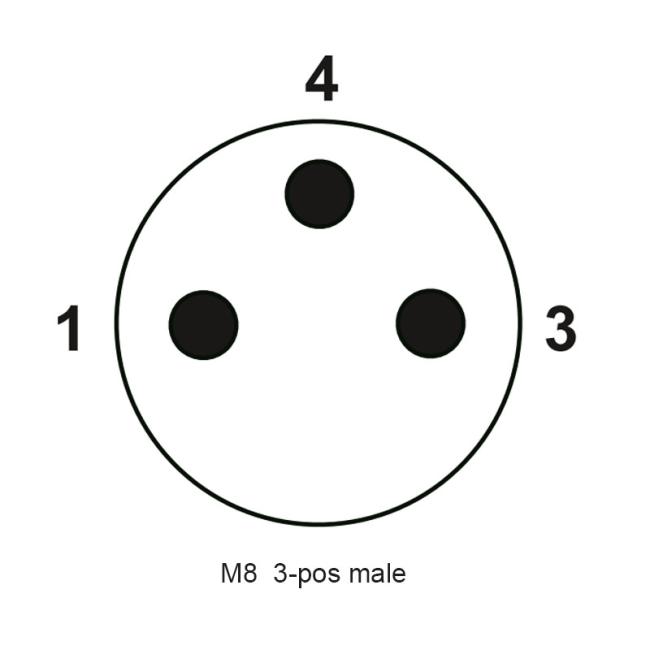

IP67 3 Pins Male Molded Cable Right Angle Shielded M8 Connector With Cables M8 Male Bent Pin Molded Plug 3P

General Infomation
Standard IEC 61076-2-104 Insulation Resistance ≥100MΩ
Ambient Temperature

-40℃~+80℃ (fixed installation)

-20℃~+80℃ (flexible installation)

 Contact Resistance ≤5mΩ
Connector Insert TPU Shielding Unavailable
Connector Contacts Brass with Gold Plated Connector Overmold TPU
Coupling Nut/Screw Brass with Nickel Plated Mating Endurance >500 cycles
IP Rating IP68/IP69K in locked condition Certificate UL/CE/ROHS/IP67/REACH/IP68
