IP67 M12 Waterproof Connector Right Angle Elbow SMT Solder Jst Wire Straight
Price:
negotiable
MOQ:
100
Delivery Time:
14
Brand:
Rigoal
Product Description

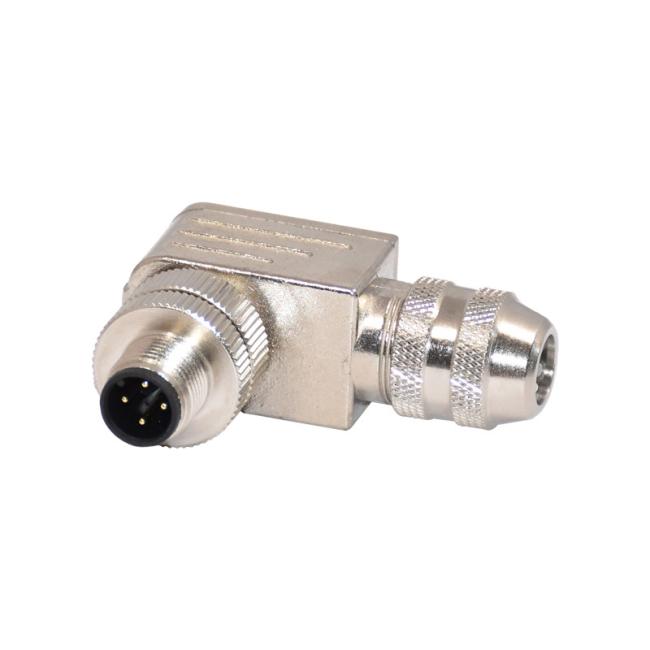

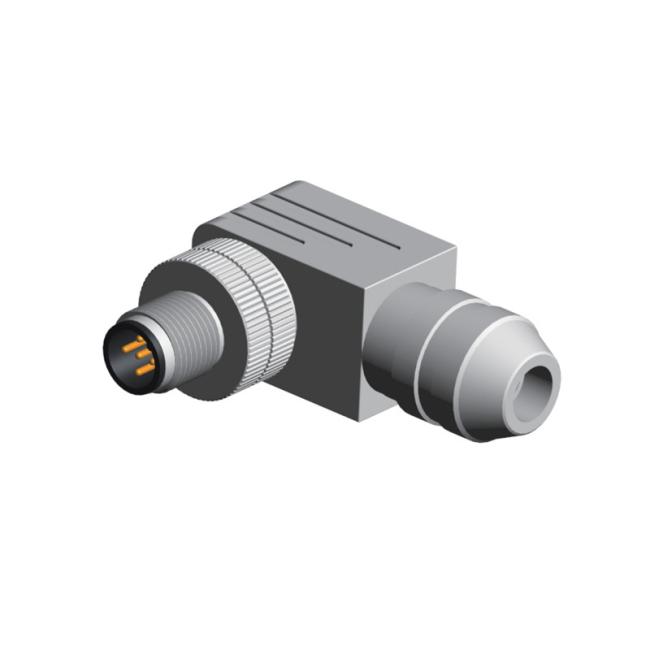

Industrial Plug Sensor Waterproof Right Angle Elbow Smt Solder Jst Wire Straight M12 Male Waterproof Connector
Products Feature
| Standard | IEC 61076-2-101 / 104 |
| Gender | Male / Female |
| Number of Contacts | 2 / 3 / 4 / 5 / 8 / 12 / 17 Pin |
| Coding | A / B / C / D / K / L / X / S / T Code |
| Termination | Soldering / PCB / Srew - Jo1nt |
| Cable length | Base on customer's request |
| Contacts plating | Gold plated, thickness 1 U" |
| Orientation | Straight / Right Angle |
| Insert/ Housing | NYLON66 + GF |
| Overmold / Shell | Metal shell |
| Connector contacts | Brass with gold plated |
| Rated current | 4A: 3 / 4 / 5Pin 2A: 8 Pin 1.5A: 12 Pin |
| Rated Voltage | 250V: 3 / 4 / 5 Pin 60V: 8 Pin 30V: 12Pin |
| Ambient temperature | -40°C~ + 90°C |
| Coupling nut / screw | Brass with nickel plated screw |
| Insulation resistance | ≥100MΩ |
| Sealing | Epoxy resin |
| Contacts resistance | ≤5MΩ |
