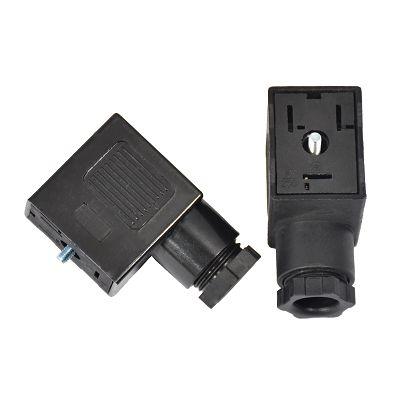

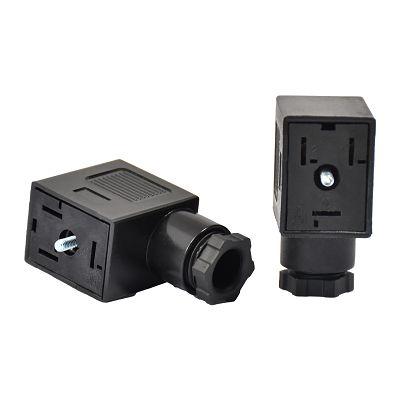

Assembly Solenoid value connector b type

Product description:

Number of contacts:2+PE/3+PE

Connector lock system:central screw

Termination:screw

Wire gauge:22AWG-16AWG(0.34MM²-1.5 MM²)

Calbe outlet:6-8mm

Degree of protection:IP65

Mechanical operation:>50 mating cysles

Upper temperature:+120°C

Lower temperature:-30°C

Rated voltage:250V

Rated impulse voltage:4000V

Pollution degree:3

Overvoltage categorie:Ⅲ

Material group: Ⅲ

Rated current(40°C):10A

Contact resistance:≦15Ω

Material ot contact:CuSn/bronze

Contact plating:nickel

Material of Conntact body and housing:PA

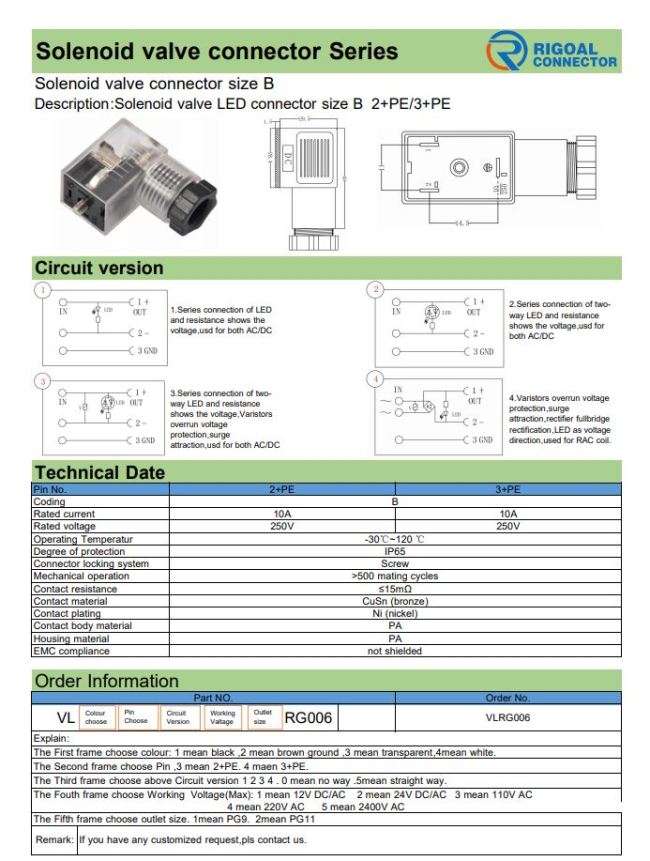

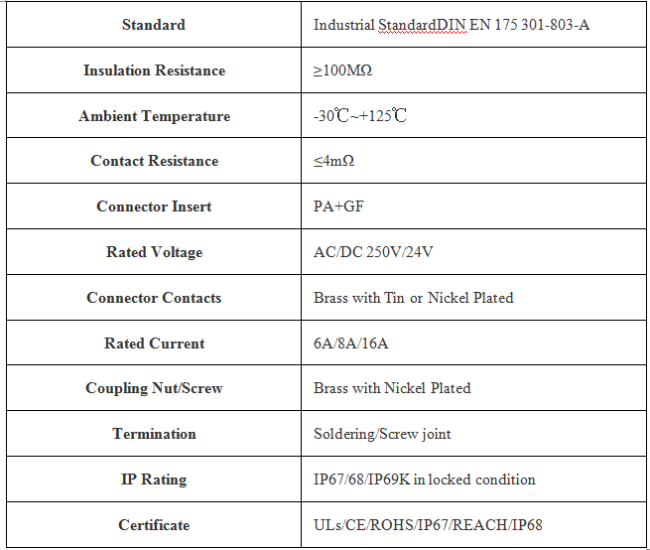

Soleniod valve connector Specification:

IP65 UL Rohs CE approved

Equivalent to Binder ,Lumberg etc

OEM or ODM are available

Ambient temperature: -40°C~+125°C

Polarity: 3P 4P 2+2PE 3+PE

Coding: A/B/C

Free LOGO on overmold of connector

Certifications

Package&Shipping:

Packaging

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton

Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm

2. OEM/ODM package is avaiable

3. According to customer choice.

Shipping

We can according to customer request choose different ship way,which more converence ,which we will choose!

Quality statement:

● Screws/nuts materials: brass with nickel plating, CNC parts

● Male contacts materials: brass with gold plating, machined solid pin

● Female contacts materials: phosphor bronze with gold plating, machined solid pin

● Protection degrees: IP67/IP68 in locked status

● RoHS Directive-compliant
