M8 connectors of different types wholesale

Product Description

Connector Series: M8
Standard: IEC 61076-2-104
Coding: A
Pins: 3 pin, 4 pin, 5 pin, 8 pin

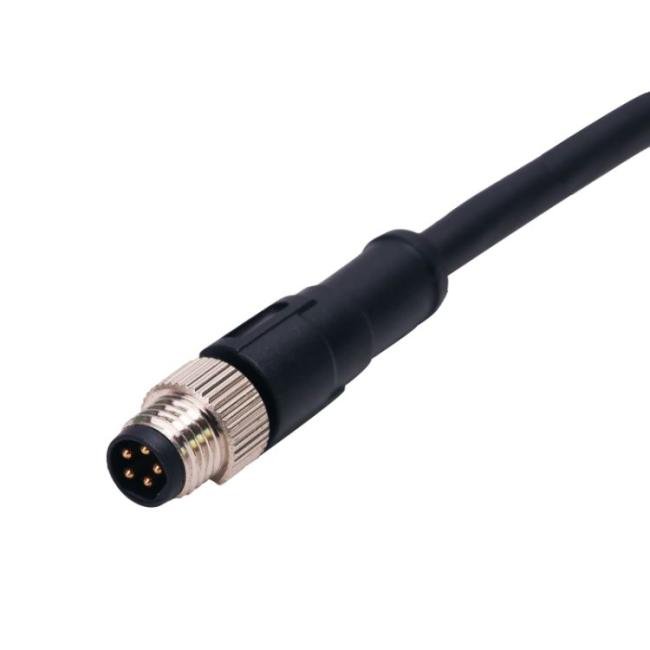

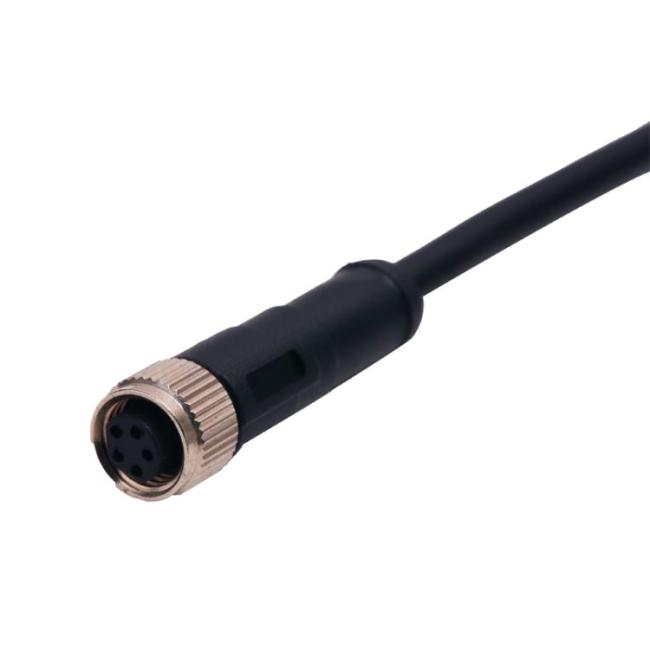

Gender: Male / Female
Connector Design: Cable plug
Connector Locking System: Fix screw

Waterproof Rating: IP67/IP68
Ambient Temperature: -10℃~+80℃

Connector Specification:

Connector Body: TPU


Male Contacts: Brass with gold plated
Screw/Nut: Brass with nickel plated


Waterproof 0-ring: FKM

Electrical Data:
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Rated Current: 3A~1A
Rated Voltage: 60V~30V


Cable/Wire Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C

Packaging & Shipping

Packaging: Individual packed in transparent PE bag with label.

OEM/ODM Packaging: Yes, we can do your own packaging, like do your logo on the PE bag.

Shipping: by DHL, UPS, FeDex, TNT door to door service, by normal air freight, by normal sea freight.

Our Services

• Low cost but good quality in ip67/ip68 waterproof in locked condition with ISO9001 management under efficient service.
• Provide free samples within 2 working days if it is the normal product with existing tooling.
• OEM & ODM is available.

Quality Control

• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked by QC.
• 100% testing for open circuit and short circuit and 100% smooth operation before shipping.
