Nickel Plated 5p M8 Panle Mount Coupler TPU GF M8 Sensor Connector
M8 5pin panle mount coupler
M8 Series Panel Mount Connector
The M8 Circular Connectors is the connector of 8mm metric size with thread locking mechanism, which is one of the most commonly used in factory automation, sensor/actuator boxes, field-bus and industrial controllers.
ShenZhen Rigoal Provides the M8 Panel Mount Male /Female Straight /Angled Connector with 3, 4, 5, 6, 8 Poles .
Quick Details:
* Series: M8 Panel Mount Connector
* Pin Numbers: 3, 4, 5, 6, 8Pin are acceptable
* Gender: Male/Female
* Termination Type: Soldering with Single End or Double End or PCB
* Feature: Water and Dustproof to IP67 when mated with compatible connector

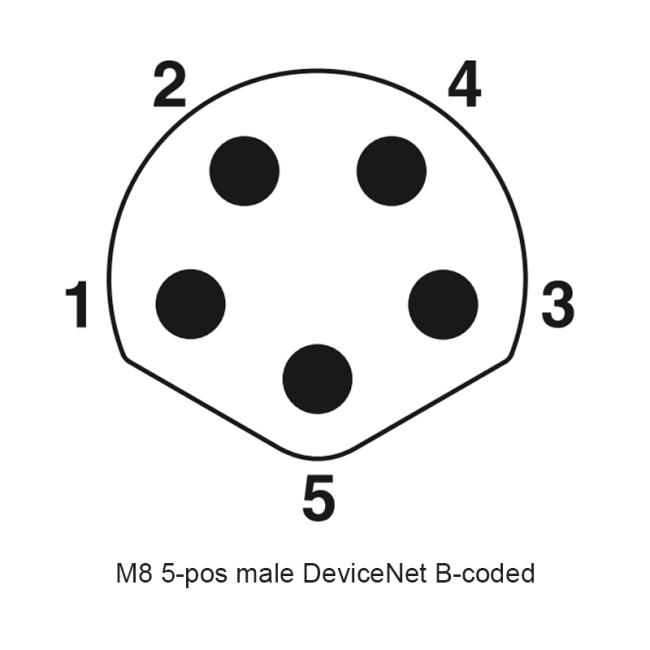

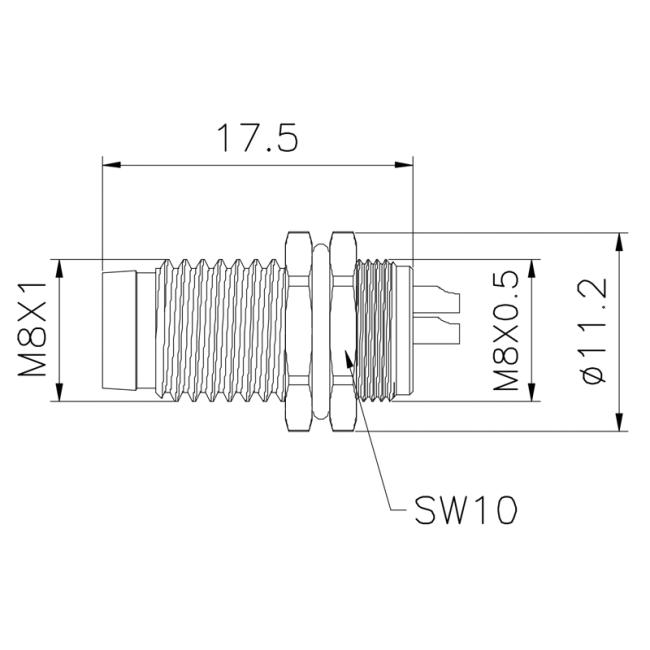

Technical Overview Data & Contact Diagrams
| Product Series | M8 Panel Mount Connectors | IP rating | IP67 |
| Pin numbers | 3Pin/4Pin/5Pin/6Pin/8Pin | Mating cycle | ＞500 |
| Locking Mechanism | Screw Coupling | Contact Resistance | <5mΩ |
| Termination | Soldering | Insulation Resistance | >100mΩ |
| Shell material | Nickel Plated Brass | Temperature range | -25℃~ +85℃ |
| Insert material | PA66 | Rated voltage | 60V~30V |
| Contact material | Brass with gold Plated | Rated current | 4A/1A |
|
|
|
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 3-5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: What kind of connectors can you provide ?
A3: Our main products are : Screw type , Spring type, Barrier type, Pluggable type, Feed Through type, Din Rail type, Air plug, heavy duty type and Cables assembly.
Q4: What is your terms of payment ?
A4: We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
