250 Pcs/Min Brad Nail Staples Making Machine High Speed
Brad Nail Making Machine Staples Making Machine High Speed Made In China C Ring Machine
Hydraulic Pressure Brad Nail Making Machine 250 Pcs/Min High Speed Made In China
Hydraulic Pressure Brad Nail Making Machine 250 Pcs/Min Made In China With High Speed 5400 style divergent point staple machine type staples forming machine
Brad Nail Staple Pin Making Machine 250pcs/Min C ring machine Staples Forming Machine
Brad Nail Making Machine Of C ring machine staples forming machine
Product Description
1. Description of C ring machine point staple machine type staples forming machine .
Zinc coated round steel wire in coils are put on passive driven type wire stands pay-off, then go through two pairs of straightening rollers(one in vertical and one in horizontal), go into one pair of flattening rollers to form flatten wire(the distance between two flattening wire can be adjusted according to actual size need). Then be cut and punched into required shape type single wire, meanwhile be sticked together by A+B glue, then get induction heating and blowing drying, then cut into required length of staple.
Zinc coated round steel wire in coils are put on passive driven type wire stands pay-off, then go through pairs of straightening rollers and feeding device. Then be cut and punched into required shape type single wire, meanwhile be sticked together by tapes, then cut into required length of C ring.
For sizes less than C30, machine structure is same, for different wire diameter need to exchange railways. For size no less than C30, machine power is different, for different wire diameter need to exchange railways.
C ring machine
This C ring machine is used very broad in China.
This ST-CR02 C ring machine staple machine used abroad in china.
2. Technical parameter
| Model | ST-CR01 | ST-CR02 |
| Straightening and feeding motor | 0.5KW | 0.5KW |
| Cutting and forming motor | 0.5KW | 0.5KW |
| Treated wire size | C17/22/24 | C30/43/45 |
| Capacity | About 250pcs/min | About 150-180pcs/min |
| Machine weight | 270kgs | 270kgs |
| Machine size | 1000*700*1500mm | 1000*700*1500mm |
3. Photos

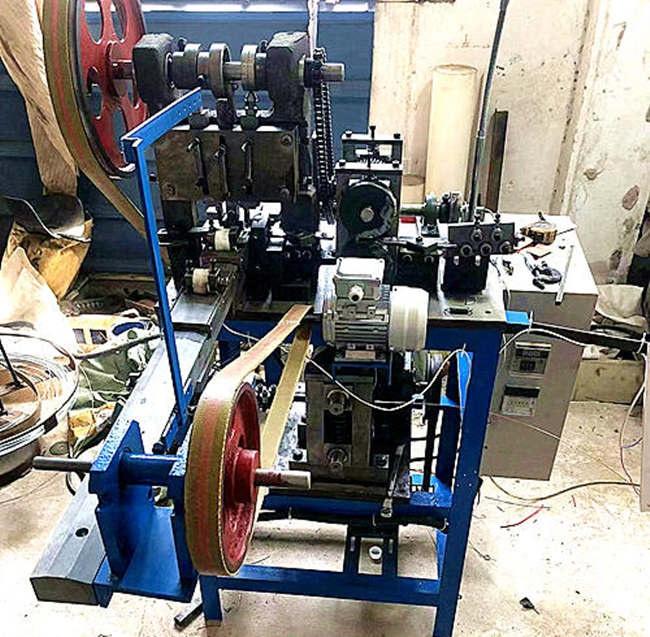

C ring machine
Wire coiler

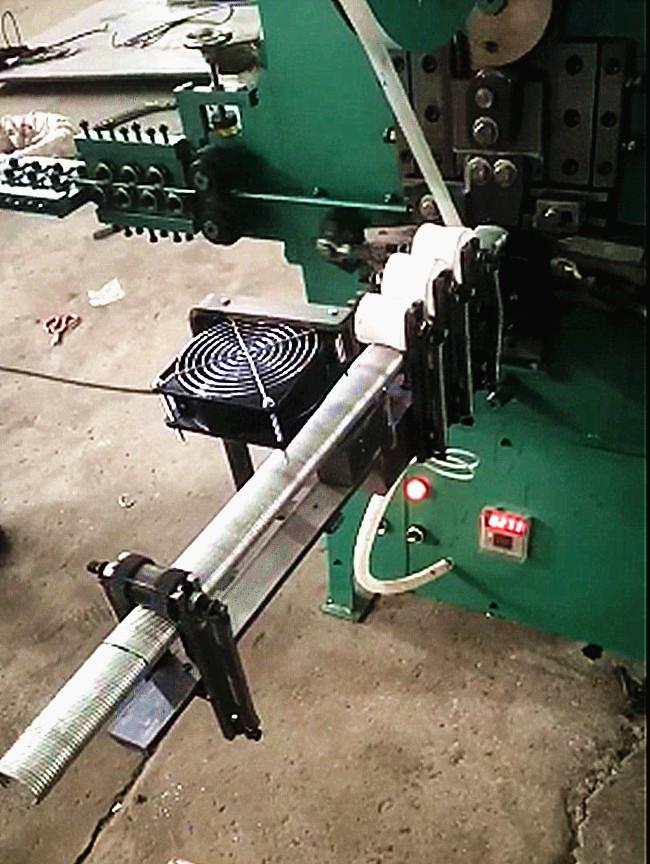

Pick up nails machine,straightening device and banded wire pay-off is as following:
4. Packaging & Shipping
We can pack it by pallet, or according to the customers' specific requirements.
Port: Shanghai/Ningbo
5. Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in metal products area.
Any doubt Please contact us.
FAQ:
| Q1: What's the terms of trade? |
| A1: FOB,CFR,CIF or EXW are all acceptable. |
| Q2: What's the terms of payment? |
| A2: T/T,L/C at sight or cash. |
| Q3: What is the advantage about your company? |
| A3: Our company has professional team and professional production line. |
| Q4: If we travel to China to checking your facility, are you welcome? |
| A4: Of course, We will provide the whole accompany upon your arrivial. Warm Welcome! |
| Q5: How Many Years of your company working in this industry? |
| A5: We have over 10-year experience in this field. |
