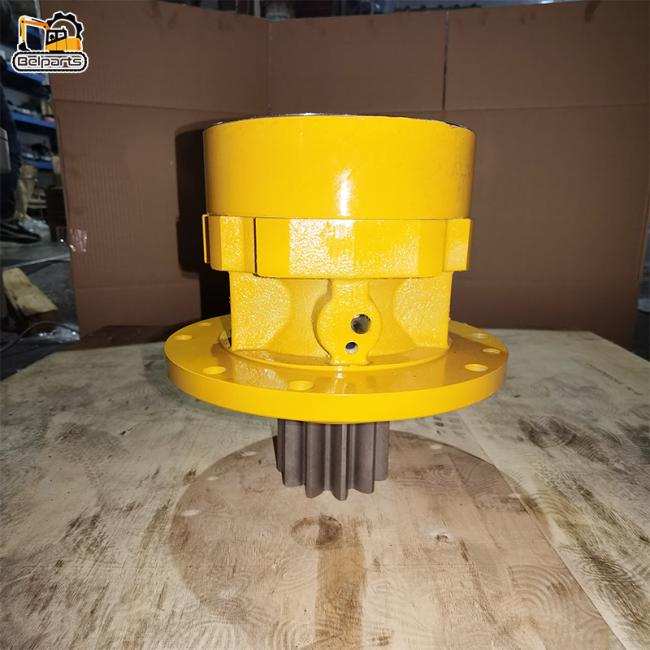

Excavator R80-7 Swing Motor Gearbox 31n1-10150
Excavator R80-7 swing gearbox 31N1-10150 hydraulic swing device
|
Appliion |
Excavator |
|
Part name |
Belparts |
|
Material |
Steel |
|
Model |
R80-7 |
|
MOQ |
1PC |
|
Payment term |
T/T, Paypal, Trade assurance, or as required |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |

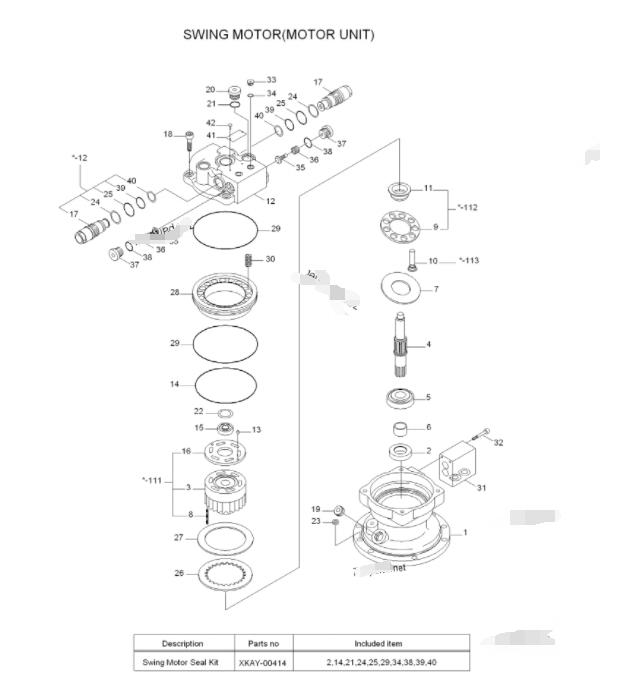

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31N1-10150 | SWING MOTOR ASSY 4200-4210 |
1 | |
| *-1 | 31N1-10130 | SWING MOTOR | 1 | |
| 1 | XKAY-00644 | BODY | 1 | |
| K2 | XKAY-00116 | SEAL-OIL | 1 | |
| *-11 | XKAY-00645 | ROTARY KIT | 1 | |
| *-111 | XKAY-00646 | CYLINDER BLOCK KIT | 1 | |
| N3 | XKAY-00119 | CYLINDER BLOCK | 1 | |
| N8 | XKAY-00124 | SPRING | 9 | |
| N16 | XKAY-00134 | PLATE-VALVE | 1 | |
| *-112 | XKAY-00647 | RETAINER KIT | 1 | |
| 9 | XKAY-00126 | PLATE-SET | 1 | |
| N11 | XKAY-00129 | GUIDE-BALL | 1 | |
| *-113 | XKAY-00648 | PISTON KIT | 1 | |
| N10 | XKAY-00128 | PISTON SHOE ASSY | 9 | |
| 4 | XKAY-00120 | SHAFT | 1 | |
| 5 | XKAY-00121 | BEARING-TAPER | 1 | |
| 6 | XKAY-00122 | BUSHING | 1 | |
| 7 | XKAY-00123 | PLATE-SHOE | 1 | |
| 12 | XKAY-00649 | COVER-REAR | 1 | |
| 13 | XKAY-00131 | PIN | 2 | |
| K14 | XKAY-00420 | O-RING | 1 | |
| 15 | XKAY-00133 | BEARING-TAPER | 1 | |
| *-12 | XKAY-00650 | RELIEF VALVE KIT | 1 | |
| N17 | XKAY-00651 | RELIEF VALVE ASSY | 2 | |
| K24 | XKAY-00141 | RING-BACK UP | 2 | |
| K25 | XKAY-00310 | O-RING | 2 | |
| K39 | XKAY-00423 | O-RING | 2 | |
| K40 | XKAY-00157 | RING-BACK UP | 2 | |
| 18 | XKAY-00136 | BOLT-SOCKET | 4 | |
| 19 | XKAY-00137 | PLUG | 1 | |
| 20 | XKAY-00138 | PLUG | 1 | |
| K21 | XKAY-00267 | O-RING | 1 | |
| 22 | XKAY-00139 | SHIM | AR | |
| 23 | XKAY-00140 | PLUG | 3 | |
| 26 | XKAY-00143 | PLATE-FRICTION | 1 | |
| 27 | XKAY-00144 | PLATE | 1 | |
| 28 | XKAY-00145 | PISTON-PARKING | 1 | |
| K29 | XKAY-00422 | O-RING | 2 | |
| 30 | XKAY-00147 | SPRING | 18 | |
| 31 | XKAY-00148 | VALVE-TIME DELAY | 1 | |
| 32 | XKAY-00149 | BOLT-WRENCH | 3 | |
| 33 | XKAY-00150 | PLUG | 2 | |
| K34 | XKAY-00256 | O-RING | 2 | |
| 35 | XKAY-00152 | VALVE | 2 | |
| 36 | XKAY-00153 | SPRING | 2 | |
| 37 | XKAY-00154 | PLUG | 2 | |
| K38 | XKAY-00247 | O-RING | 2 | |
| 41 | XKAY-00653 | PLATE-NAME | 1 | |
| 42 | XKAY-00159 | RIVET | 2 | |
| K | XKAY-00414 | SEAL KIT SEE ILLUT |
1 | |
| *-2 | 31N1-10140 | REDUCTION GEAR-SWING 4210 |
1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
|
