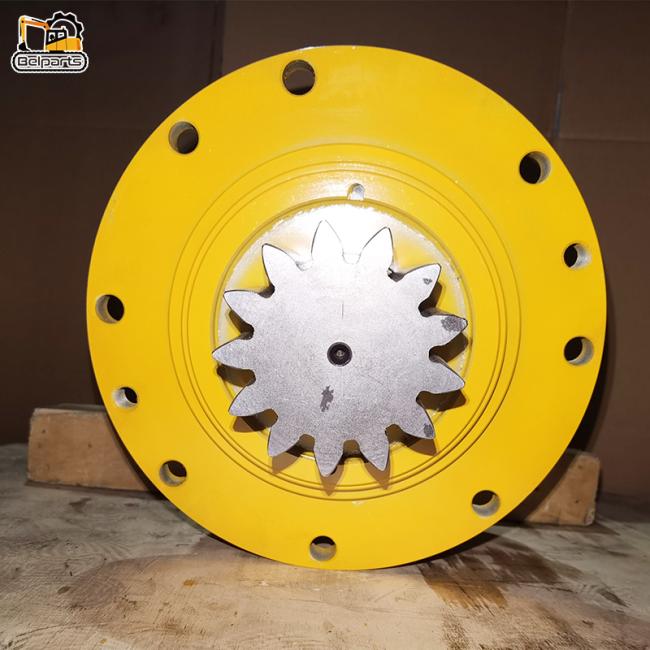

R60-7 Excavator Swing Gearbox 31M8-10140 Hydraulic Swing Device
Excavator R60-7 swing gearbox 31M8-10140 hydraulic swing device
|
Appliion |
Excavator |
|
Part name |
Belparts |
|
Material |
Steel |
|
Model |
R60-7 |
|
MOQ |
1PC |
|
Payment term |
T/T, Paypal, Trade assurance, or as required |
|
Delivery |
2 days after the payment received |
|
Shipment |
by sea, by air, by express, or as required |

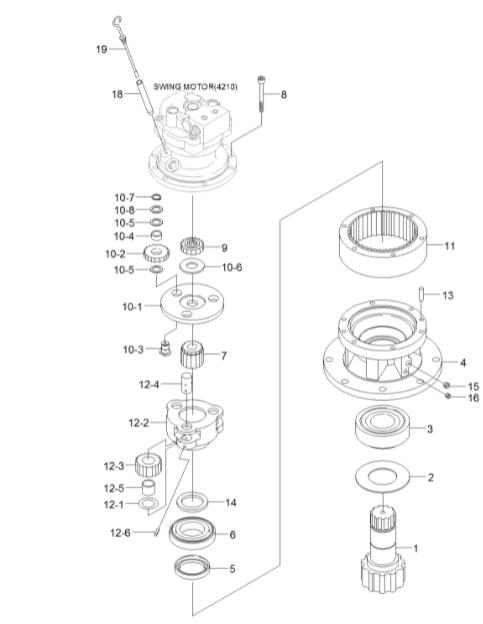

List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4210 |
| *-2. | 31M8-10140 | [1] | SWING REDUCTION GEAR | |
| 1. | XKBR-00001 | [1] | SHAFT-DRIVE | |
| 2. | XKBR-00002 | [1] | COVER-BEARING | |
| 3. | XKBR-00003 | [1] | BEARING-TAPER ROLLER | |
| 4. | XKBR-00004 | [1] | CASE | |
| 5. | XKBR-00005 | [1] | SEAL-OIL | |
| 6. | XKBR-00006 | [1] | BEARING-TAPER ROLLER | |
| 7. | XKBR-00007 | [1] | SUN GEAR NO.2 | |
| 8. | XKBR-00008 | [6] | BOLT-SOCKET | |
| 9. | XKBR-00009 | [1] | SUN GEAR NO.1 | |
| 10. | XKBR-00010 | [1] | CARRIER ASSY NO.1 | |
| 10-1. | XKBR-00020 | [1] | CARRIER NO.1 | |
| 10-2. | XKBR-00021 | [3] | GEAR-PLANET NO.1 | |
| 10-3. | XKBR-00022 | [3] | PIN NO.1 | |
| 10-4. | XKBR-00023 | [3] | BUSHING NO.1 | |
| 10-5. | XKBR-00024 | [3] | WASHER-THRUST NO.1 | |
| 10-6. | XKBR-00025 | [1] | WASHER-THRUST NO.3 | |
| 10-7. | XKBR-00032 | [3] | RING-SNAP | |
| 10-8. | XKBR-00033 | [3] | WASHER-THRUST NO.4 | |
| 11. | XKBR-00011 | [1] | GEAR-RING | |
| 12. | XKBR-00012 | [1] | CARRIER ASSY NO.2 | |
| 12-1. | XKBR-00026 | [3] | WASHER-THRUST NO.2 | |
| 12-2. | XKBR-00027 | [1] | CARRIER NO.2 | |
| 12-3. | XKBR-00028 | [3] | PLANET GEAR NO.2 | |
| 12-4. | XKBR-00029 | [3] | PIN NO.2 | |
| 12-5. | XKBR-00030 | [3] | BUSHING NO.2 | |
| 12-6. | XKBR-00031 | [3] | PIN-SPRING | |
| 13. | XKBR-00013 | [2] | PIN-DOWEL | |
| 14. | XKBR-00014 | [1] | COLLAR-HALF | |
| 15. | XKBR-00015 | [2] | PLUG | |
| 16. | XKBR-00016 | [2] | PLUG | |
| 18. | XKBR-00018 | [1] | PIPE | |
| 19. | XKBR-00019 | [1] | GAUGE-LEVEL | |
| *-1. | 31M8-10130 | [1] | SWING MOTOR UNIT | SEE 4210 |
