65mn Mine Sieve Screen Wire Mesh For Aggregate / Mining ISO9001 Approved
65mn Mine Sieve Screen Wire Mesh For Aggregate And Mining Factory In Anping
65mn Mine Sieve Screen Wire Mesh for Aggregate and Mining introduction:
Crimped wire mesh is a square mesh made by ginning through ginning and weaving different types of metal wires of different materials through a new type of weaving machine.
Material
Black iron wire, lead wire, stainless steel wire, galvanized wire,65Mn steel wire etc.
Production Process
First rolling and then weaving
Features
Sturdy and durable structure, commonly used specifications 1-24 mesh, 1-5 meters wide.
65mn Mine Sieve Screen Wire Mesh for Aggregate and Mining specification:
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh/ Inch | Aperture (mm) | Weight (kg) |
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |

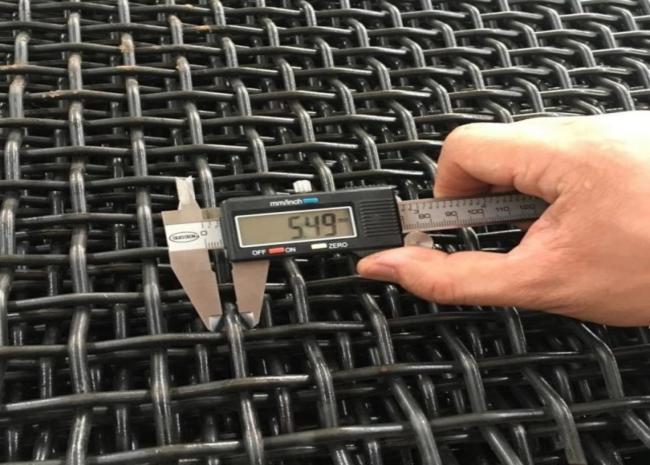

65mn Mine Sieve Screen Wire Mesh for Aggregate and Mining detail:
