Hexagonal Rockfall Protection Netting 1-50m/roll Flexible Metal Netting
hexagonal rockfall barrier system,flexible metal netting introduction:
Hexagonal wire mesh roll is the simplest type among all the rockfall barrier system. Just deploy hexagonal wire mesh roll from top of the mountain to bottom and secured by the anchor plate and anchors. The neighbor netting is connected by the sewing ropes. The hexagonal wire mesh roll can prevent stones and soil from falling down to the ground and protect personal and property safety. It can reduce the harm caused by the landslide, snow avalanche and other natural hazards.
Specifications of rockfall barrier system
- Material: galvanized wire or Galfan wire.
- Wire diameter: 2.7 mm / 3.0 mm.
- Mesh size: 6 cm × 8 cm, 8 cm × 10 cm.
- Zinc coating weight: ≥ 260 g/m2.
- Roll width: 0.8 m, 1.0 m, 1.2 m, 1.5 m, etc.
- Roll length: 50 m or 100 m.
hot dipped galvanized hexagonal wire mesh used for rockfall netting fence detail:
| mesh type | hexagonal hole size |
| mesh size | 60x80mm, 80x100mm, 100x120mm,120x150mm |
| wire material | heavy galvanized coated wire - 250grams/m2 galfan coated wire - zn-al5% / zn-al10% pvc coated galvanized wire |
| roll size | 2m x 50m, 3m x 50m,2mx30m |
| packing | 8rolls / plywood pallet |

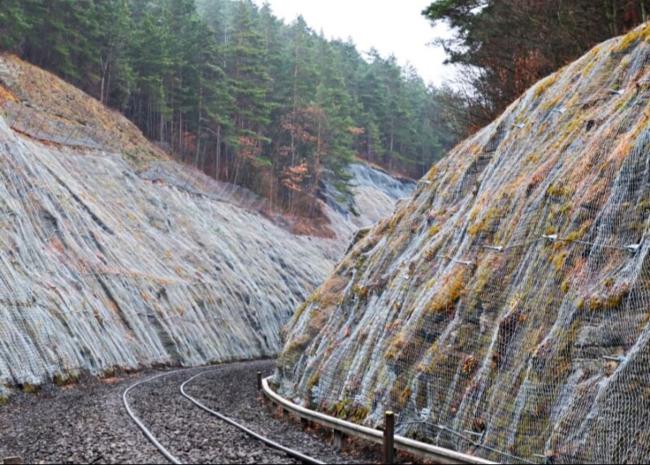

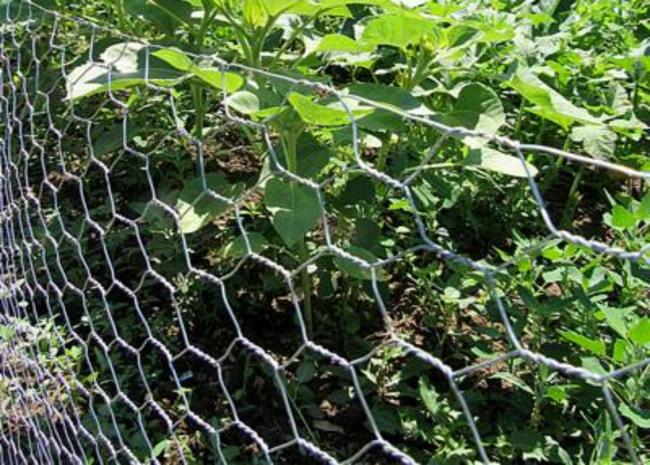

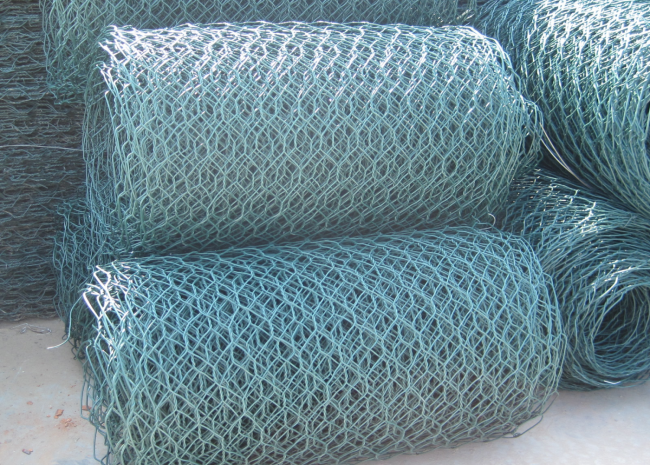

hot dipped galvanized hexagonal wire mesh used for rockfall netting fence picture
