Decorative Expanded Metal Mesh Sheet Size Customized For Highway
Expanded Metal Mesh Sheet Highway Security Fence Barrier Decorative Expanded Mesh
Expanded Metal Mesh sheet
Expanded metal mesh sheet

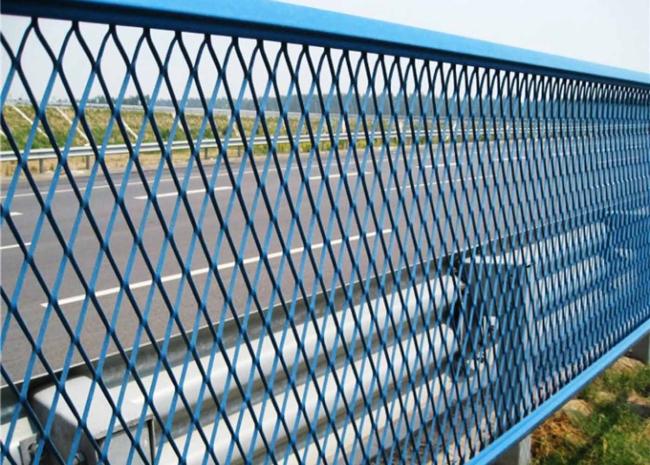

Expanded metal mesh sheet can be used on expressways, as an isolation barrier, or as an anti glare device
Advantages of Expanded metal mesh sheet for express way
- Expanded metal mesh sheet can not only ensure the continuity of anti dazzle facilities and horizontal intervisibility, but also isolate up and down lanes to achieve the purpose of anti dazzle and isolation
- Expanded metal mesh sheet is economical and beautiful with less wind resistance
- Expanded metal mesh sheet can prolong service life and reduce maintenance costs through galvanizing and plastic coating
Specification of expanded metal mesh sheet
In our factory, we can make the expanded metal mesh sheet as your requirements.
Your can share the following information with us.

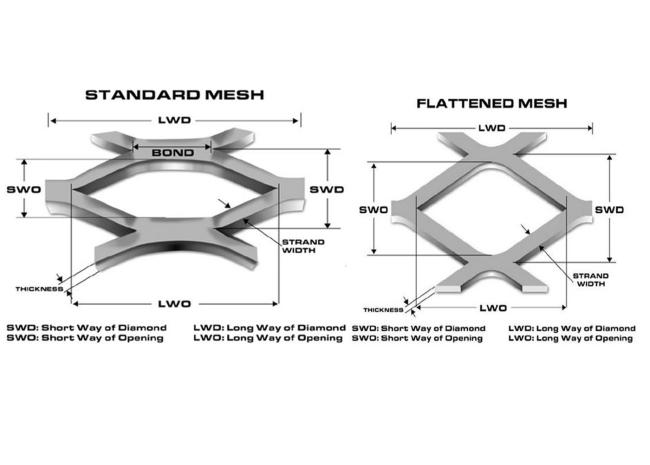

- Short pitch (SWM): The length of the short diamond diagonal from the node center to the node center.
- Long pitch (LWM): The length of the long diamond diagonal from the node center to the node center.
- Short pitch (inner hole) (SWD): the diagonal length of the short diamond hole (as shown in the figure)
- Long pitch (inner hole) (LWD): the diagonal length of the long diamond hole. (As shown in the figure)
- Strand: the edge of the rhombic hole of the steel mesh (as shown in the figure). The width of the stem is the length of the metal plate used to make a wire stem.
- Bond: the joint of two wire stems.
- Thickness: the thickness of the original steel plate.
- Roll: Steel mesh wound into rolls indicating specific length and width.
- Mesh: steel mesh indicating specific length and width
| Specifications of Expanded Metal Mesh | ||||||
| Thickness(mm) | SWD(mm) | LWD (mm) | Wire Stem Width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.5 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.1 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 1.5 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.6 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.1 | 2 | 4 | 3.69 |
Material of the Expanded metal diamond mesh
According to the difference usages, the material is different, the common materials as follows.
- Aluminum
- Stainless Steel
- Low Carbon Aluminum
- Low caron steel,
- Galvanized steel
- Copper
- Titanium etc

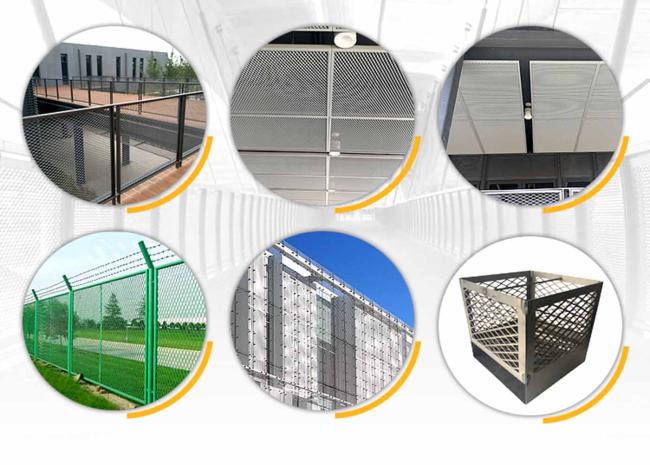

Application of the expanded metal mesh sheet
Expended metal mesh can be widely used in including theprotection of machinery equipment, handicraft manufacturing, shelves, heavy machinery, work platforms, walkways,ships as well as other areas.

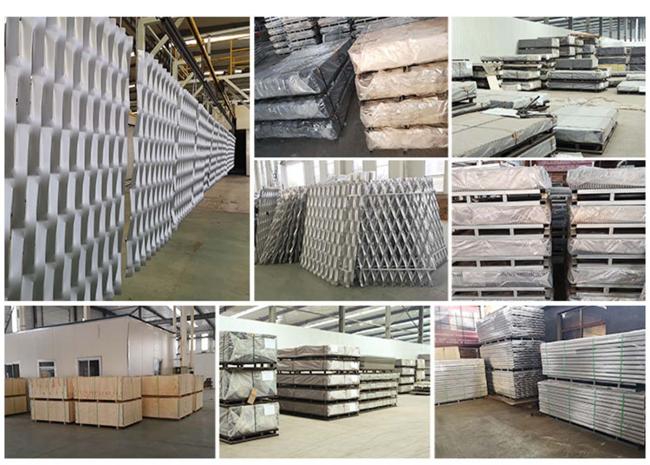

Package of the expanded metal mesh sheet
Our Services:
1. OEM is accepted: customized items based on your demands
2. Good service: we always treat you as friends and try best to meet our requirements
3. Good quantity: we have highly-strict quality control system on our manual work, each cage is made by our worker’s hand.
4. Fast & cheap delivery: we have our own long-term shipping partners and will choose the best line for you.
5. We are specializing in servicing the European and Asian markets.
6. Our production lead time is depended on specific sizes and quantity.
