Hot dipped galvanized Steel serrated and smooth Grating
Product Description:

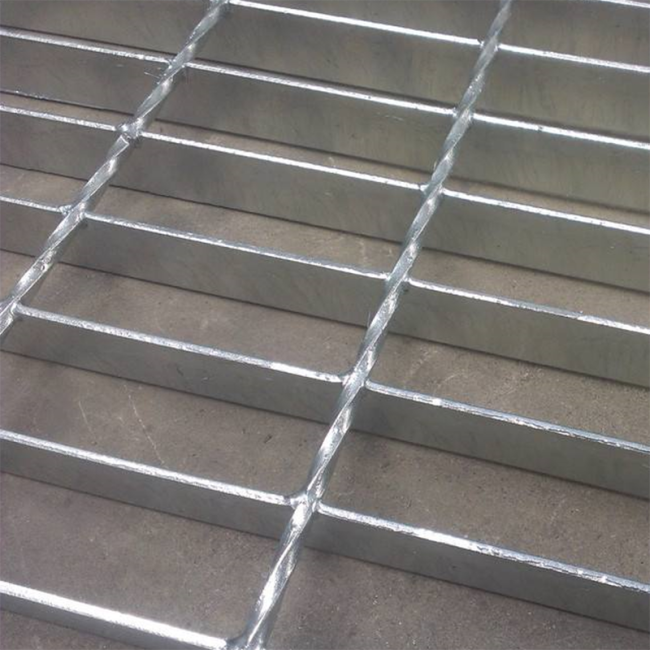

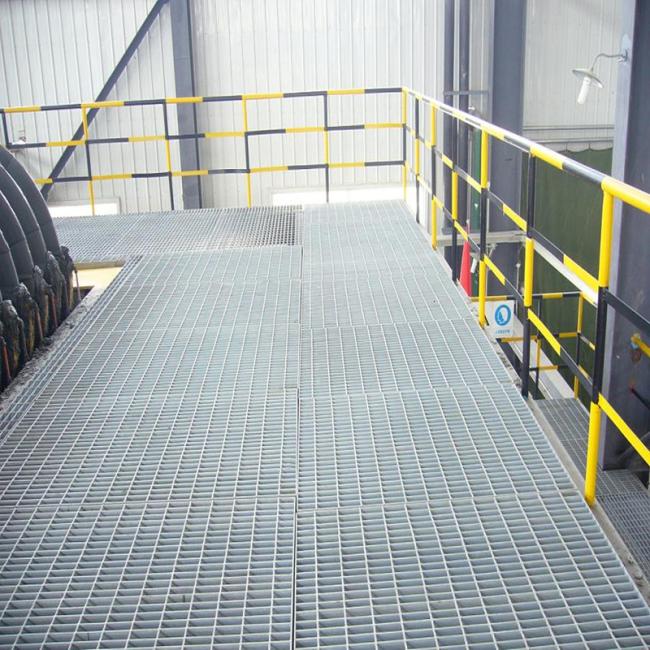

Steel Bar Grating is a kind of floor grating which is made of Q235 or stainless steel material, and is widely used for walkway mesh, floor mesh and stair treads in many fields. It is easy to install and has various types, such as surface treatment with hot-dip galvanizing or powder coated, grating width from 1000mm to 6000mm, bearing bar pitch from 15-30mm, 40mm, 60mm, 80mm, 90mm etc. with 30, 40mm recommended. Its advantages include anti-corrosion, fire-resistance, convenient installation and high strength. Steel Bar Grating is suitable for many applications and is the ideal solution for pedestrian and light vehicle traffic.
Features:
- Product Name: Steel Bar Grating
- Bearing bar: 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5
- Bearing Bar Size: 20x3mm, 25x3mm, 30x3mm, 30x5mm, 32x5mm, 40x5mm, 50x5mm
- Bearing Bar Spacing: 25mm,30mm,40mm,50mm,60mm
- Grating Width: 1000mm, 2000mm, 3000mm, 6000mm
- Material: Q235, Stainless Steel
- Highlights: Grating, Stainless Steel Grating, Metal Grating
Technical Parameters:
| Attribute | Details |
|---|---|
| Bearing Bar Spacing | 25mm, 30mm, 40mm, 50mm, 60mm |
| Cross Bar Pitch | 30, 38, 50, 76, 100mm Etc. With 50, 100mm Recommended |
| Bearing Bar Size | 20x3mm, 25x3mm, 30x3mm, 30x5mm, 32x5mm, 40x5mm, 50x5mm |
| Color | Silver or Black |
| Cross Bar Size | 5x5mm, 6x6mm, 8x8mm |
| Grating Width | 1000mm, 2000mm, 3000mm, 6000mm |
| Bearing Bar Pitch | 15-30mm, 40mm, 60mm, 80mm, 90mm Etc. With 30, 40mm Recommended. |
| Cross Bar Spacing | 50mm, 100mm |
| Installation | Easy |
| Cross Bar Type | Twisted, Round, Flat |
| Uses | Bar Grating, Floor Grating, Storm Drain Grating, Stainless Steel Grating |
Applications:
New gabion's Steel Bar Grating is the perfect choice for projects that require floor grating, storm drain grating, and other industrial applications. This product is certified by ISO 9001 and ISO 14001 and is available in a variety of sizes and thicknesses. This grating is made from Q235 and stainless steel materials and can be purchased in 1000mm, 2000mm, 3000mm, and 6000mm lengths, and 2mm, 3mm, 4mm, 5mm, and 6mm thicknesses. The cross bar type is available in twisted, round, and flat. The minimum order quantity is 100M and the delivery time is within 15 days after receiving deposit. We accept payment through T/T and L/C and can provide a supply ability of 5 tons per day.
Customization:
- Brand Name: New gabion
- Model Number: G-1888
- Place of Origin: China
- Certification: ISO 9001, ISO 14001
- Minimum Order Quantity: 100M
- Packaging Details: Pallet or bulk
- Delivery Time: within 15 days after receiving deposit
- Payment Terms: T/T, L/C
- Supply Ability: 5 tons per day
- Grating Length: 1000mm, 2000mm, 3000mm, 6000mm
- Material: Q235, Stainless Steel
- Grating Width: 1000mm, 2000mm, 3000mm, 6000mm
- Cross Bar Spacing: 50mm,100mm
- Bearing Bar Size: 20x3mm, 25x3mm, 30x3mm, 30x5mm, 32x5mm, 40x5mm, 50x5mm
We provide customized steel bar grating services, including stainless steel grating, drain grating, drain grill, steel bar grating, etc.
Packing and Shipping:

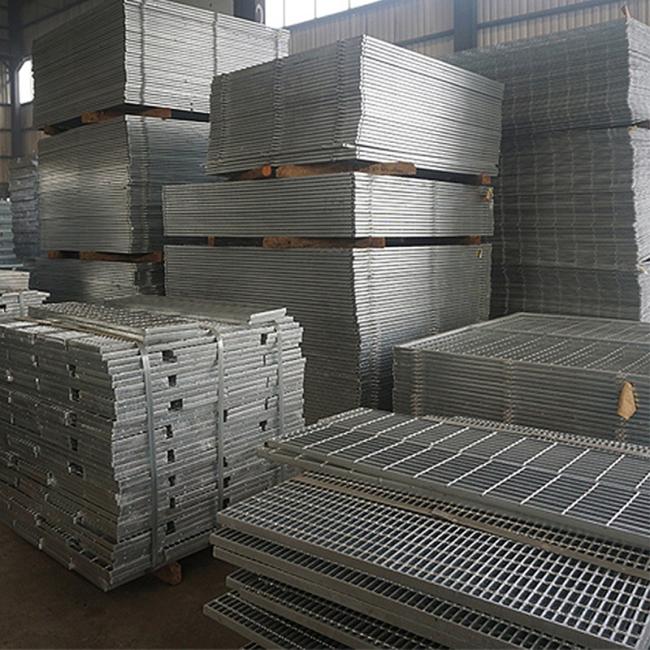

Steel Bar Grating is typically packaged and shipped in bundles or stacks, depending on the size of the grating. The bundles or stacks are then secured with wire straps. In some cases, a wooden skid may be used to provide additional protection and security.

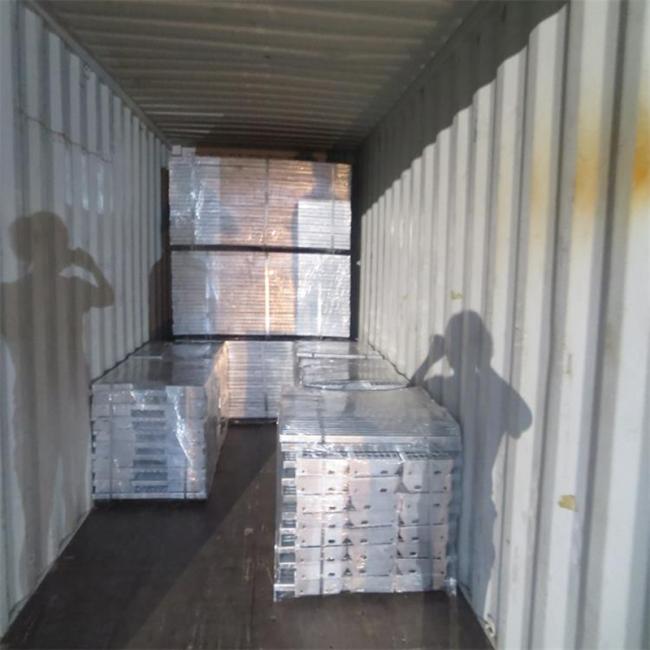

The bundles or stacks are then loaded onto a truck for delivery. In some cases, an over-the-road truck may be used for long distances. For shorter distances, a local delivery truck may be used.
