SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection
SNS flexible slope security screen wire mesh for rockfall netting system

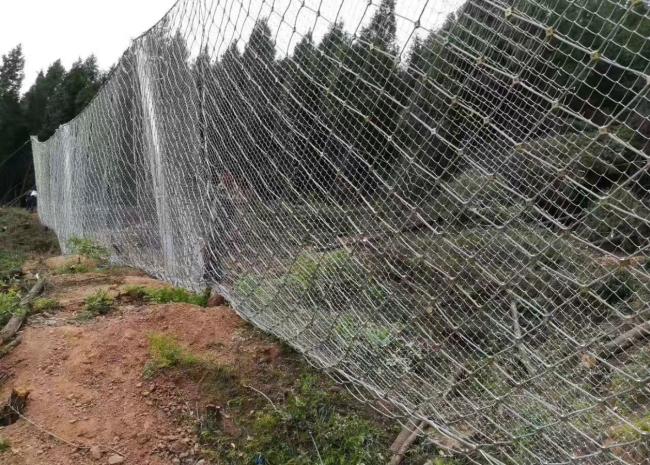

SNS Passive protection system is also called stone blocking mesh, made by flexible steel wire rope netting installed in the slopes to stop the falling rocks . It can also be installed in the mud-rock flow area to form the flexible fencing dam to stop the huge solid pellets in the flow.
SNS Passive protection system for rockfall netting introduction:

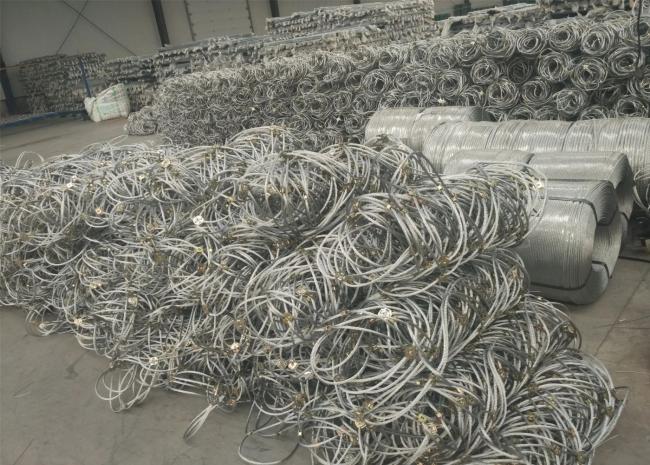

Diamond wire rope net:
Rope wire diameter: 8mm
Hole size: 100mm-300mm (+/- 5%)
Roll size: 4m x 5m, etc.
Grid net:
Wire diameter: 2.0mm or 2.2mm
Hole size: 50mm*50mm
Roll size: 2m*20m
SNS Passive protection system anchors:
Steel Rope anchor diameter: 16mm
Length:2x2-6m
Rope:
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
SNS Passive protection system other Components: Steel Column, rope support base, vacuum ring
SNS Passive protection system for rockfall netting material:
SNS Passive protection system for rockfall netting
| Model | Net Size | Upper Anchor Rope | Supporting Rope | Anchor Rope | Sewing Rope | Loading Capacity |
| RX-025 |
Wire rope net: Wire diameter: 8 mm. Mesh size: 250 mm x 250 mm. |
16 mm single steel wire rope. 1 decompression ring |
12 mm double steel wire rope. Each spacer has 3 decompression rings |
12 mm single steel wire rope | 8 mm | ≤250 kJ |
| RX-050 | Wire rope net: Wire diameter: 8 mm. Mesh size: 200 mm x 200 mm. |
14 mm single steel wire rope. 1 decompression ring |
16 mm double steel wire rope. Each spacer has 6 decompression rings |
16 mm single steel wire rope | 8 mm | ≤500 kJ |
| RX-075 |
Wire rope net: Wire diameter: 8 mm. Mesh size: 150 mm x 150 mm. |
18 mm single steel wire rope. 2 decompression ring |
18 mm double steel wire rope. Each spacer has 10 decompression rings |
18 mm single steel wire rope | 8 mm | ≤750 kJ |
