Gabion

About Gabion

Gabion is also well known as .

Gabion is a hexagonal mesh woven by high-quality low-carbon steel wire or PVC coated wire. It is mainly used for slope protection, riverbed bedding and anti scouring, etc.

Gabion structure

Gabion is connected into a whole after being filled with block stones and other filling materials.

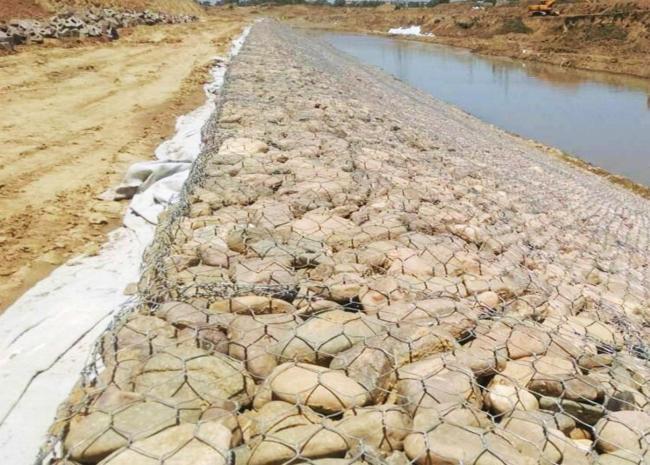

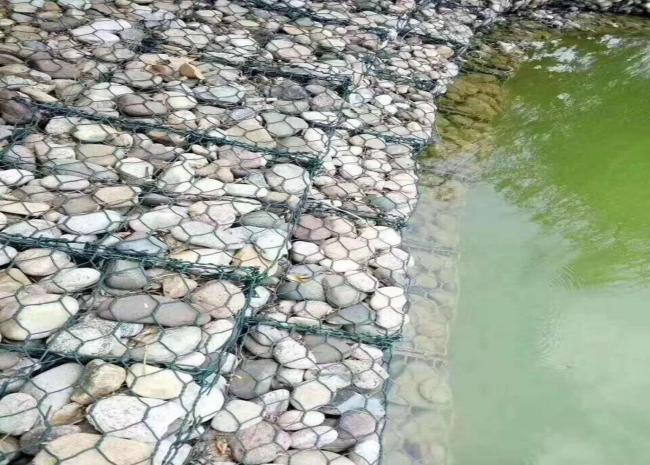

Gabion has become an anti scour structure mainly used for water conservancy embankment, bank slope, apron, etc., and has the advantages of flexibility and adaptability to the foundation

Difference between Gabion box and Gabion

The difference between Gabion and Gabion cage is that the height of is low, and the structural form is flat and large

Its diameter of coated steel wire is smaller than that of gabion, and there are generally two kinds of double clapboard (steel wire diameter 2.0mm) and single clapboard (2.2mm).

The commonly used is the double diaphragm Reynolds pad, which has the advantages of convenient construction, slope protection can effectively prevent stone collapse, and increase the anti scouring capacity of the structure.

Advantages of the Gabion .

1. The gabion can improve the stability of riverbed slope

2. The gabion can protect the riverbed from scouring

3. Greening and ecological protection of slope and bank protection

4. Convenient construction, the gabion can be installed in the construction site, it’s easily to install.

5. The Gabion can be folded, it’s convenient to delivery.

Specification of Gabion cage of popular in our factory

The Advantages of the gabion

1. Using gabion to build dams is fast and highly mechanized,

2. Convenient transportation: the gabion can be folded and packed with pallets, it will be save the freight..

3. The gabion is easy to install, it can be assembled on the construction site, which is convenient and fast.

4. Strong corrosion resistance: Wire surface of the gabion is adopted hot galvanizing technology to increase its corrosion resistance.

5. Environmental protection: the earth between the filling materials of the embankment built with gabion net is conducive to the growth of plants.

XINGEBIN brand woven gabion basket is widely used for the following application: control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.
