Security Welded Wire Mesh Fence 0.5mm-2.5mm Wire Gauge Color Customized
Welded Wire Mesh Fence With Hot Galvanized And PVC Coated As Farm Fence, Football Fence

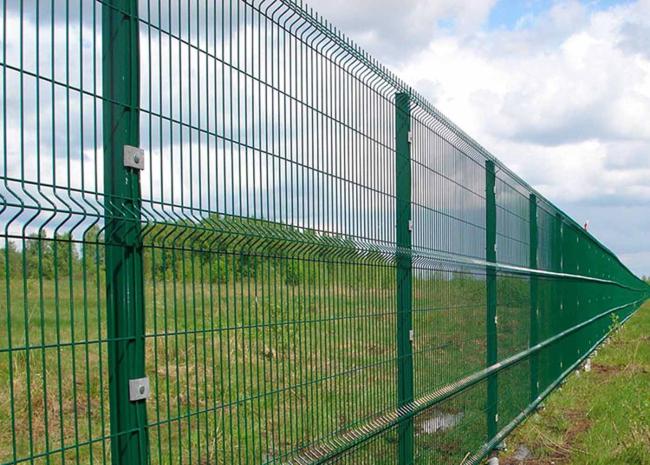

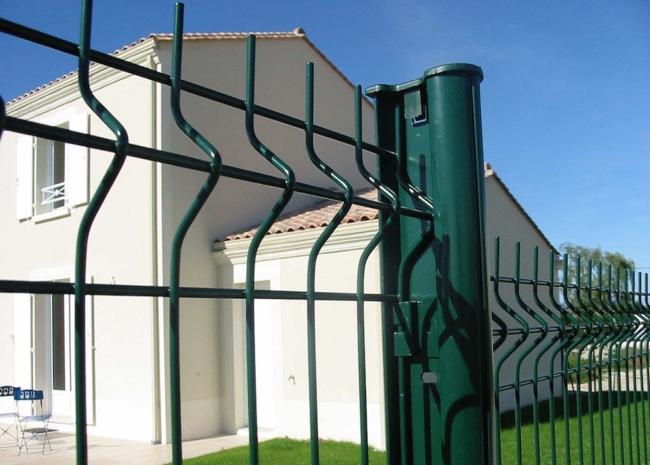

Welded wire mesh fence introduction
Welded wire mesh fence is welded with high-strength cold drawn low-carbon steel wire to form a mesh, and then hydraulically formed, and then fixed with the steel pipe pillar with link accessories.
Welded wire mesh fence specification
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm | 3.0mm | 2.0m | 630mm | 2 | Round Post | ||
| 50x150mm | or | or | 830mm | 2 | Rectangular Post(RHS) | ||
| 50x200mm | 3.5mm | 2.50m | 1030mm | 2 | 48x1.5/2.0mm | Square Post(SHS) | |
| 55x200mm | or | or | 1230mm | 2 | 60x1.5/2.0mm | 40x60x1.5/2.0mm | |
| 75x150mm | 4.0mm | 2.9m | 1430mm | 2 | 50X50x1.5/2.0mm | 40x80x1.5/2.0mm | |
| etc. | or | 1530mm | 3 | 60x60x1.5/2.0mm | 60x80x1.5/2.0mm | ||
| 4.50mm | 1630mm | 3 | 80x80x1.5/2.0mm | 80x100x1.5/2.0mm | |||
| or | 1730mm | 3 | |||||
| 5.00mm | 1830mm | 3 | |||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | |||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you. | |||||||
The advantage of welded wire mesh fence
- The raw material of welded wire mesh fence is welded with high-strength low-carbon steel wire. It has high strength, good rigidity and beautiful appearance.
- The surface of the guardrail is hot-dip galvanized wire or PVC coated plastic, which can increase the anti-corrosion effect and prolong the service life

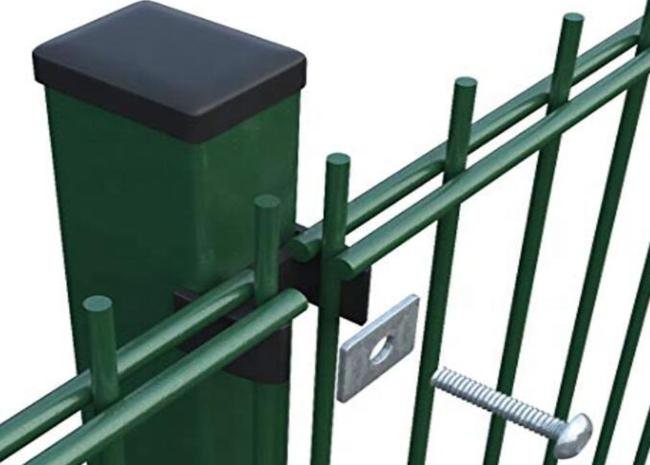

- The welded wire mesh fence is easy to install. On the construction site, workers only need to link the welded wire mesh and post with bolts, which is very simple.
