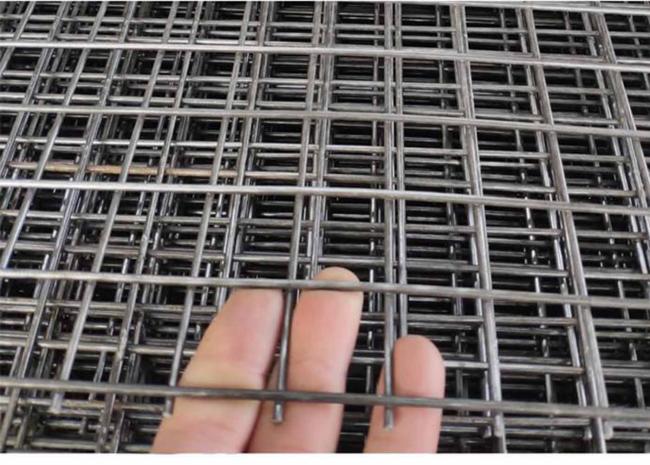

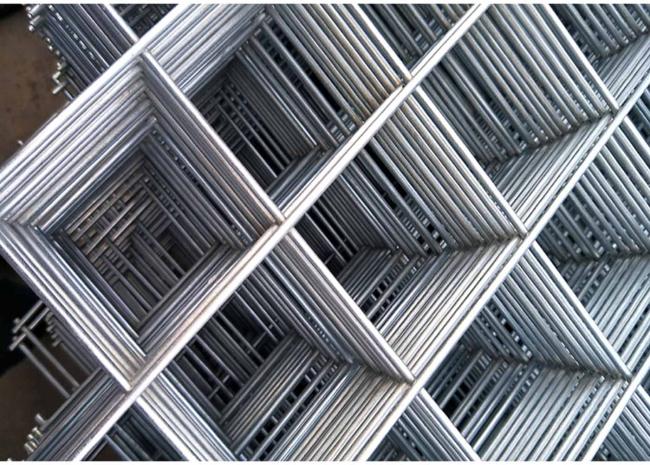

Galvanised Welded Wire Mesh Panels 5.8m×2.2m For Construction
Galvanized Welded Wire Mesh Panel For Construction 5.8*2.2 Meters Low Carbon Steel
Glavanized welded wire mesh panel introduction
There are two types of galvanized welded mesh panel:
One is hot-dip galvanized welded wrie mesh panel. The advantages of this kind of welded mesh panel are the thickness of the zinc layer on the surface of the iron wire, this welded mesh has a strong anti-corrosion ability and a service life of about 10 years. However, its price is high, in addition, the price is different according to the thickness of the zinc layer on the iron wire.
The other is electric galvanized welded wire mesh panel . The zinc layer on the surface of this electric welded wire mesh is thin, but the service life is relatively longer than that of ordinary welded wire mesh, The price is cheaper than that of hot-dip galvanized welded wire mesh panel, but the price is lower than that of ordinary welded wire mesh.
The galvanized Welded wire mesh jpanel specification
| Spec. | Wire dia.(MM) | Hole (CM) | Weight (KG) |
| 1M×2M | 2 | 10×10 | 1.06 |
| 1M×2M | 2 | 15×15 | 0.67 |
| 1M×2M | 2 | 20×20 | 0.56 |
| 1M×2M | 2.5 | 10×10 | 1.65 |
| 1M×2M | 2.5 | 15×15 | 1.04 |
| 1M×2M | 2.5 | 20×20 | 0.88 |
| 1M×2M | 3 | 10×10 | 2.38 |
| 1M×2M | 3 | 15×15 | 1.5 |
| 1M×2M | 3 | 20×20 | 1.27 |
The advantage of galvanized welded wire mesh panel
Steel Welded wire mesh is mainly used in construction engineering, and its advantages are very significant.
- Galvanized Welded wire mesh panel has strong corrosion resistance, uniform mesh and strong overall performance
- Galvanized Welded wire mesh panel is convenient for construction and does not require on-site binding, thus shortening the construction period
- Galvanized Welded wire mesh panel is made in the factory according to the design drawings, and is paved on site to ensure the project quality.

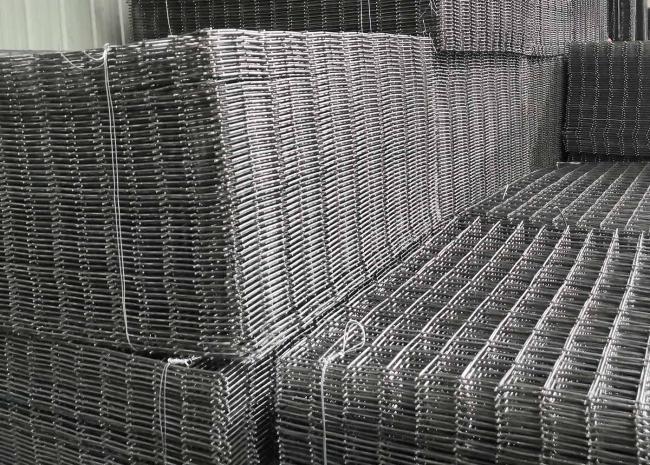

The package of the galvanized welded wire mesh panel
The package of the steel welded wire mesh is rolled and sheet, and it's easly to unload.
Material is low carbon wire, the surface treatment is hot dipped galvanized, it gets unti-rust resistance.
About our company
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line

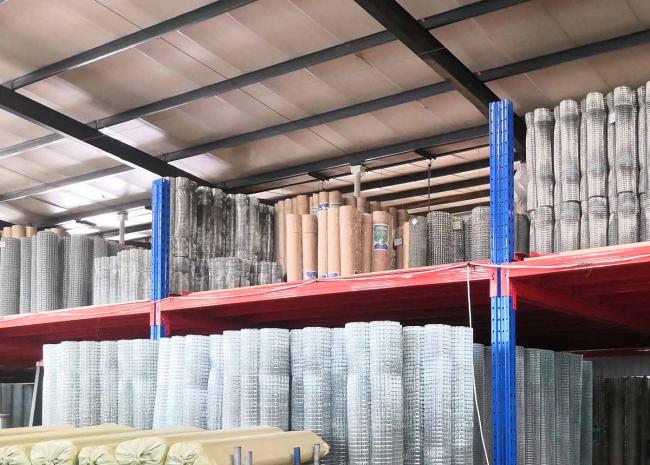

our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
