AC Inverter MMA Arc Welding Machine 0.8 Efficiency IP21 Protection

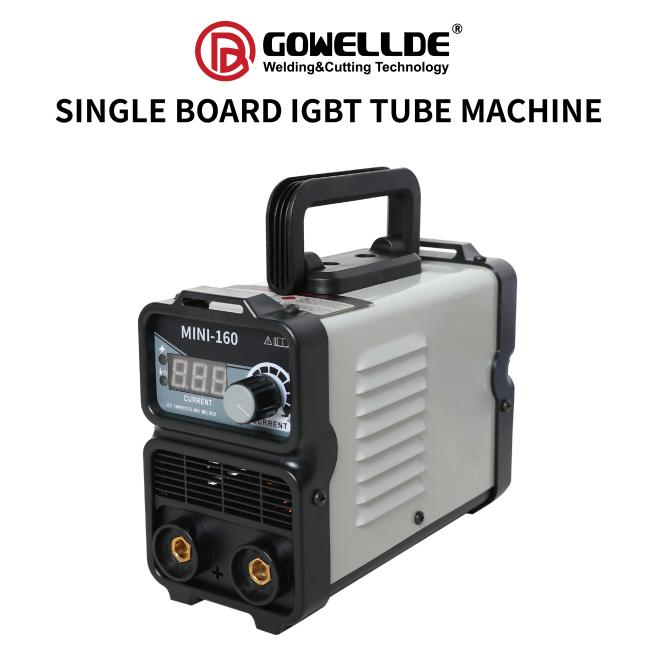

220V/160A, Arc160 Mini Case,AC Inverter, IGBT Portable MMA/Arc Welder Welding Machine
DC IGBT Inverter MMA Welding Machine ARC160:
This series is IGBT inverter DC MMA welding machine with single PCB technology, with single phase 220V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. Machine is small and lightweight while welding performance is powerful.This series is IGBT inverter DC MMA welding machine with single PCB technology, with single phase 220V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. Machine is small and lightweight while welding performance is powerful.
DC IGBT Inverter MMA Welding Machine Parameters:
| Item | ARC160 | |||
| Input power source(±15% 50/60HZ) | 1~AC220V | |||
| Rated Input current (A) | 24.6 | |||
| Rated input power capacity (KVA) | 5.4 | |||
| Output current range (A) | 20-160 | |||
| No-load voltage (V) | 65 | |||
| Rated duty cycle (%) @40℃ | 60 | |||
| Efficiency (%) | 80 | |||
| Power factor (cosφ) | 0.73 | |||
| Protection class | IP21 | |||
| Insulation class | F | |||
| Dimensions (mm) | 224*102*165 | |||
| Weight (Kg) | 2.5 | |||
