1. Easy installation, low cost.
2. Widely application.
3. Anti-rust
4. Environmentally friendly.
5. Suitable for metal, wood, plastic post, etc.

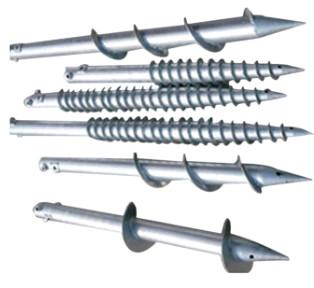

OD76mm Steel Ground Screw
Price:
negotiation
MOQ:
1 pc
Delivery Time:
negotiation
Brand:
YiHang
Product Description
Krinner Cheap Solar Ground Screw For Pv Mountion With Hot Galvanized
Ground Screw Pole Anchor is applied in many fields, such as:
1. Timber Construction;
2. Solar Power Systems;
3. City and Parks;
4. Fencing Systems;
5. Road and Traffic;
6. Sheds and Containers;
7. Flag Poles and Marks;
8. Garden and Leisure;
9. Boards and Banners;
10. Event Structures.
Solarfirst Helical Ground Screw Anchor Helical Screw Pile Foundation For Buildings
Product Description:
Ground screw system is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.It can be widely applied to different soil conditions. Ground screw can be used for many kinds of application, like solar system; timer-fram construction; advertising and traffic systems; urban garden and landscape construction; flag poles and so on.
Advantages:
A. Compatibility With All Type Of Structures
B. Foundation Solution Concrete Free.
C. Surrounding Areas Remains Unspoiled.
D. Easy Remove Simple And Easy To Relocate.
Advantages:
A. Compatibility With All Type Of Structures
B. Foundation Solution Concrete Free.
C. Surrounding Areas Remains Unspoiled.
D. Easy Remove Simple And Easy To Relocate.
Key Specifications/Special Features:
Advantages:
Material: Steel
Surface treatment: Paint
Size: 8" 10" 12" 14" 16" 18"
EPRsolar Ground Screws perform perfect in anti-corrosion & wear-proof and can be freely designed and processed as customized lengths and other requirements. They can be easily installed at the exact points within few minutes. We just need to use ground screw piling machines to drive the ground screws directly into ground, which can largely reduce the project installation time. With such ground screws, installations can be realized in those not so even ground,
like the ground with slopes. With these obvious advantages, EPRsolar ground screws has been widely used in
solar mounting installations, carports, flagpole, traffic lights, outdoor advertising boards, temporary exhibition display field, etc.
| Material | Hot dip galvanized Q235 steel |
| Surface Treatment | Hot Glvanizing |
| Outside Diameter | 76mm or Customized |
| Thickness | 3-4mm |
| Length | 1200mm/1600mm/1800mm/2000mm/or customized |
| Thread Pitch | 40-100mm/or customized on request |
| Thread Width | Regular |
| Threads | Regular |
| Flage Size | 180mm/200mm/220mm |
| Snow Load | 0.85KN/m2 |
| Wind Speed | 32m/s |
| Warranty | 10years |
Advantages And Characteristics:
Product Advantages
1.Bar Material: 40Cr or 45# steel, round corner 5mm radiu
2.Helix Plate material conforms to ASTM A36 hot rolled plate
3.helices thickness are available in 3/8" and 1/2" inch
4.All helix leading edges sharpened and rock cut and 45 degrees.
5.Corrosion protection to conform to ASTM A153 standard for hot dipped zinc coating
6.A better conventional solid steel extra high strength helical screw pile
7.Welded coupling for greater strength. Eliminates shaft heat damage caused by upset coupling process
1. who are we?
We are based in hebei, China, start from 1998,sell to Eastern Asia(30.00%),Western Europe(20.00%),North America(20.00%),Mid East(20.00%),South Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ground screw,other solar products,fence,pile driver,pv support bracket
4. why should you buy from us not from other suppliers?
As one of the leading manufacturers specialized in ground screw for many years, our company ever took part in many large scale project both at home and abroad.The products are widely used in solar mounting systems, green house, fence and light construction
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in hebei, China, start from 1998,sell to Eastern Asia(30.00%),Western Europe(20.00%),North America(20.00%),Mid East(20.00%),South Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ground screw,other solar products,fence,pile driver,pv support bracket
4. why should you buy from us not from other suppliers?
As one of the leading manufacturers specialized in ground screw for many years, our company ever took part in many large scale project both at home and abroad.The products are widely used in solar mounting systems, green house, fence and light construction
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Manufacter supplis strightly , of good quality and big quantity .
