AA3003 H18 Aluminium Honeycomb Panels 25mm Thick PVDF Surface Coating
Aluminum Honeycomb Panel 25mm Thick With 1.0mm Aluminum Sheet
Basic info of Aluminum Honeycomb Panel
Aluminium Honeycomb Panels are lightweight but incredibly strong composite panels which deliver rigidity and flatness with minimal increase in weight.The aluminium honeycomb core used to manufacture the panels keeps the two aluminium alloy skins in position, resists shear forces, and provides insulation, while the two aluminium alloy skins provide durability, weather and impact resistance, and resist in-plane forces of tension and compression.The panels are manufactured with aluminium honeycomb cells.
Aluminium Honeycomb Panels are suitable for applications in engineering, furniture, transport, recreational vehicles, lift cladding, architectural, interiors & exteriors.
Various customer dimensions and thicknesses are available. Please contact us for a tailored quote based on your project requirements.
| Specifications Of Aluminum Honeycomb Panel | |
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Panel Thickness | 4mm, 8mm, 10mm, 15mm, 25mm,32mm Max 500mm |
| Aluminum Skin Thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Surface Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Width | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Length | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Honeycomb Core Thickness | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.12mm |
| Honeycomb Core Cell Size | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge Type | Open Edge, Close Edge or customer's design |
Product Benefits
- Lightweight
- Durable and robust
- Rigid
- High strength-to-weight ratio
- Cost effective
- Fire resistant
- Excellent compression and shear properties
- High impact resistance
- Good sound proofing properties
- Environmentally friendly
- High production efficiency
- Dimensional stability
Packing&Delivery

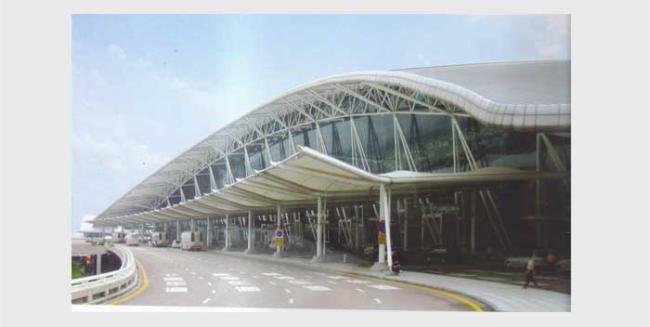

Show Case
