Back Mount 3 Psi 2.5'' 63mm Capsule Pressure Gauge 1/4'' NPT

Price Negotiable

Price: Negotiable

MOQ: 1000 pcs

Delivery Time: 20-40 work days

Product Description

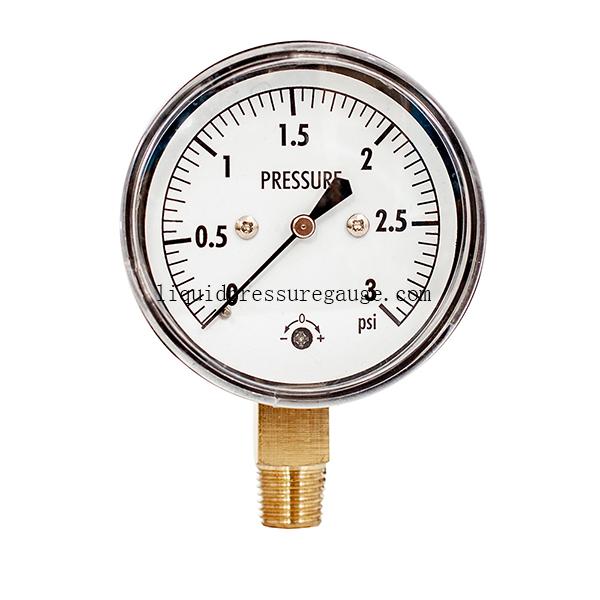

Black Stainless Steel Case 2.5'' Inch Capsule Mbar Pressure Gauge 3 Psi 1/4 NPT

Capsule pressure gauge mainly used to measure mirco pressure and negative pressure of liquid or gas that has no corrosion to copper alloy.The measuring range covers from vacuum to 3 psi.

Features:

- Range: 0-3 psi

- With zero point adjustment setting

- 1/4 NPT lower mount

- Steel case

- PC window

- Brass internal

- Dial: 2-1/2"

- Opitional: 1/4 BSP, 1/4 BSPT

Product name	Capsule pressure gauge
Application	It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy.
Face dia	2.5", 3" , 4"
Case	black painted steel or chromed steel
Connetion & socket	brass
Capsule	copper alloy
Movement	brass
Pointer and dial	aluminum
Window	acrylic
Range	Vacuum, compound, 0-15 psi
Mount	lower mount
Setting	zero adustment setting
Accuracy	±1.6%
Ambient	－40℉ to 140℉ (-40℃ to 60℃)
