Three Toothbrush Blister Packing Machine Pneumatic With PLC Control
Product Description

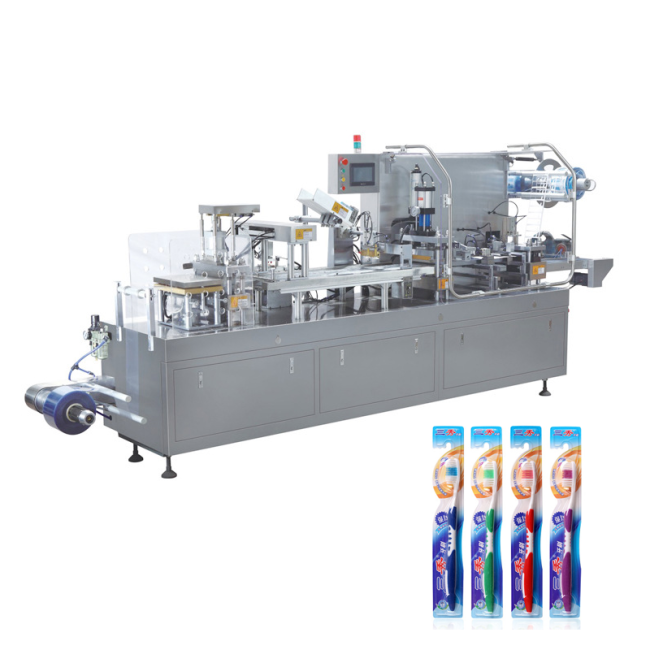

260 Automatic One Out Three Toothbrush Blister Packing Machine
Main features
Man-machine interface
PLC control, encoder support, touch screen operation
Automatic counting, adjustable stroke, precise and convenient
Variable frequency stepless speed regulation, stable operation of the machine,
Machine can be applied to paper-plastic packaging of various sizes and specifications, easy to operate.
Durable, clean and hygienic, and equipped with a safety emergency stop device to ensure emergency measures in production
Use this equipment to save materials, save labor, improve production efficiency, is currently the most ideal packaging equipment .
Application:
It is suit for daily use, stationery, minor hardware, cosmetics, medicines, as well as battery, toothbrush, pens, glues, plug base, bearing, etc. to improve the grade of the finished products.
Main Technical Specification:
|
Model |
RTZP-260 |
|
|
Packing Material |
PVC sheet thickness |
(0.15-0.5)*(max. Width 260mm) |
|
|
Cardboard 200g-500g , ,ax. Width 255mm |
|
|
Compressed air |
pressure (0.55-0.85)Mpa |
|
|
|
air consumption quantity≥0.3m/min |
|
|
Power consumption |
380V50Hz 9.5Kw |
|
|
Mould cooling water |
Running water or circle water consumption50L/h |
|
|
Overall dimension |
(L*W*H)4500*900*1650mm |
|
|
Weight |
1500Kg |
|
|
Production capacity |
10-15 punches/min |
|
|
Travel range |
35-180mm |
|
|
Max forming area |
240mm*170mm*28mm(W*L*D) |
|
|
Max forming depth |
28mm |
|
Workflow:
PVC feeding
↓

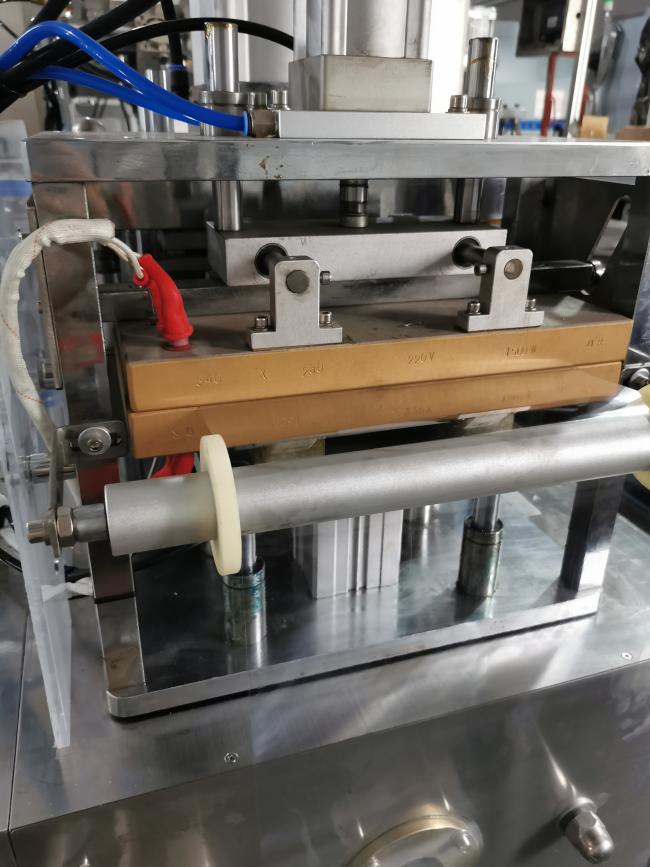

PVC heating & forming
↓
Blister towing & punching
↓

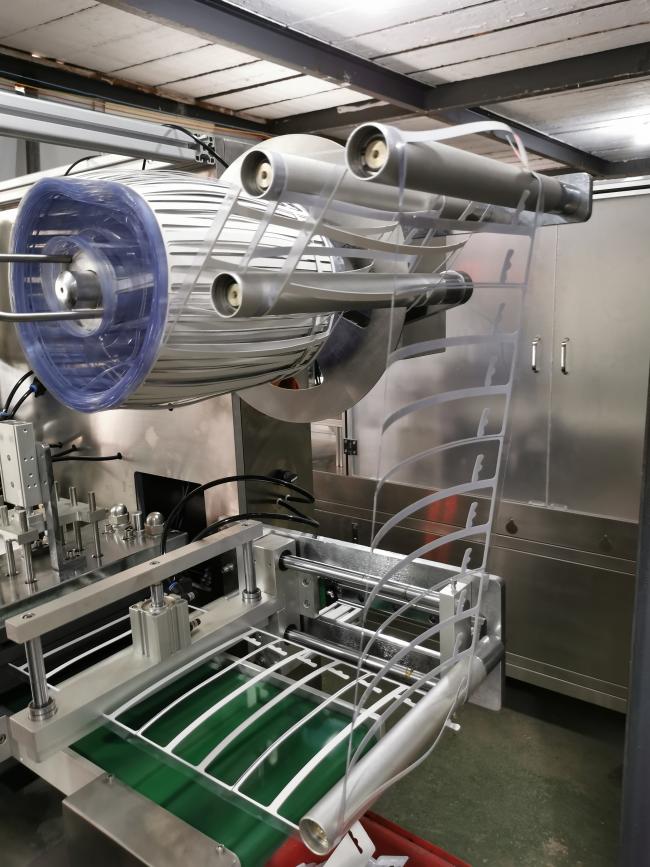

Waste material collecting
↓

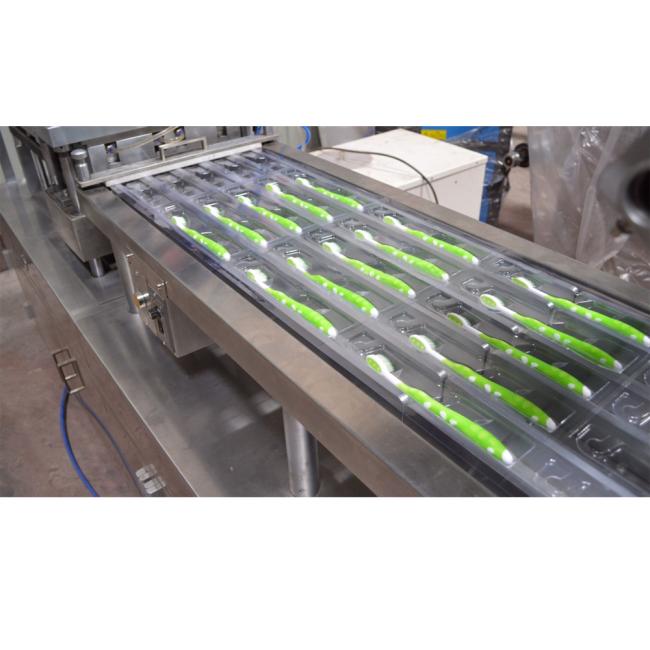

Mechanical hand picking blisters into sealing molds
↓
Inspecting the blister
↓
Feeding by hand
↓
Feeding & inspecting cardboard
↓
2times heating under high pressure
↓
Finished products
FQA
1.Are you factory or trading company?
We are factory.
2.What is your after service?
We offer customer a lifetime service.
3.Do you have CE certificate?
Yes, we have CE certificate of our machines.
4.What is the shipping time?
Around 15-30 days, depend on different model.
5.What can I do if machine stop work?
You can email us, call us or online video calls, face to face solve problem.
If the spare parts or something broken, in the warranty time,
we offer free.
