Unwind Flexographic Printing Equipment For Packing Paper Bag
Price:
Negotiation
MOQ:
1 set
Delivery Time:
in 30 days after receiving the deposit
Brand:
ruiting
Product Description

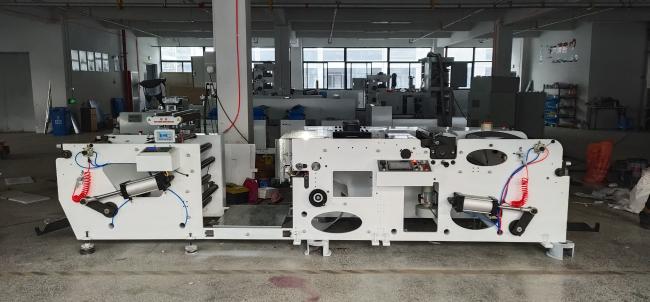

1 Color Auto Loading Seperate Unwind Printing Press For Packing Paper Bag
Main features
1)One set ceramic anilox cylinde
2)One set plate cylinder
3)Unwind auto loading, max. diameter1000mm
4)Printing unit: 360°Plate-adjustment
5)IR dryer for each printing unit.
6)With web guide system
7)Feed paper form roll material, print, coating, dry automatically by infrared ray, laminating and rewinding completed in one time.
8)It is an ideal machine for printing trade invoice and top-grade adhesive label.
Main technical specification:
| Model | RTRY-420A |
| Printing speed | 80m/minute |
| Printing color number | 1 color |
| Max width of paper | 420mm |
| Max printing wide | 410mm |
| Max unwinding diameter | 1000mm |
| Max rewinding diameter | 1000mm |
| Printing length | 175-320mm |
| Precision of overprint | ±0.1mm |
| Overall dimension | 2.6(L)×1.2(W)×1.2(H)m |
| Weight | about 1100kg |
Optional parts:(can add as your request)
- Printing unit number, up to 8 colors;
- turn bar device;
- Slitting set
- Video monitor
- Rotary die cutting set
- Cold foil
Material details:
| Printing material | paper,foil, PVC, |
| Printing ink | water based ink |
| Printing plate thcikness | 1.7mm |
