Self Adhesive Paper Roll Slitter Rewinder With 8 Sets Slitting Knife
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 working days
Brand:
ruiting
Product Description

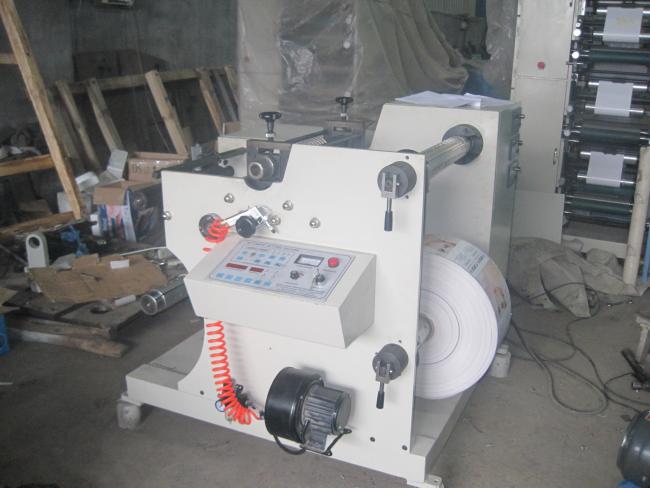

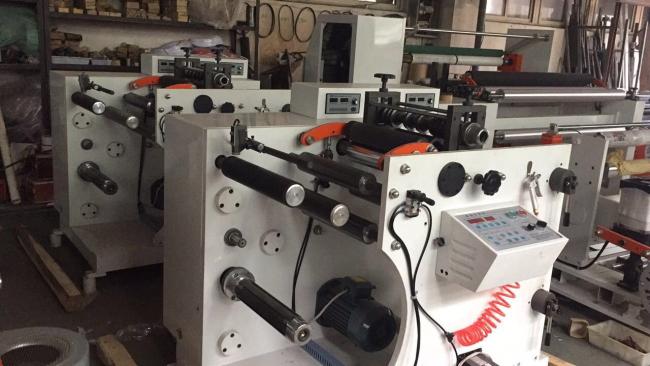

400mm To 8mm Self Adhesive Paper Roll Slitting Rewinding Machine
Product Description
- Use one photocell eye in the web guide system.

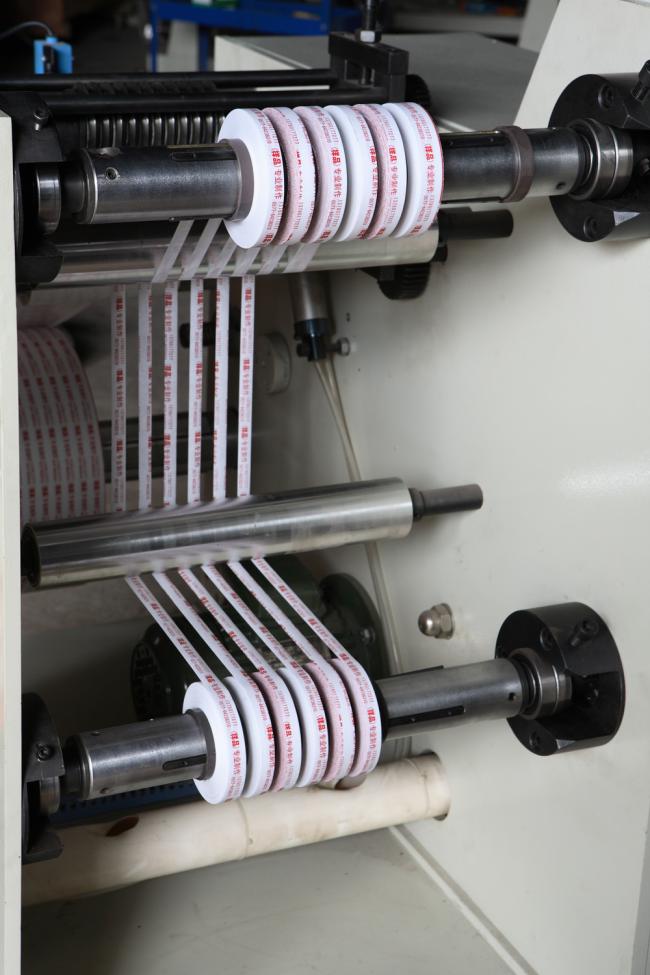

- Have 8 sets slitting knife install in the machine
- One blower fan for wasting
- Unwinding use auto taper tension control
- The unwind and rewind use 3 inch air shaft
- Frequency converter
Main Technical Specification:
| Max web width | 400mm |
| Max rewinding diameter | 400mm |
| Max. unwinding diameter | 500mm |
| Slitting width | 20mm |
| Power Voltage | AC220V±10% |
| Cutting precision | 0.2mm |
| Total Power | 2.5KW |
| slitting peed | 10-160m/min |
| Overall dimensions(L*W*H) |
1.2*1.4*1.3m |
| Machine weight | 600kg |
