220V 3 Phase Paper Slitting Rewinding Machine 120m/min high speed
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 working days
Brand:
ruiting
Product Description

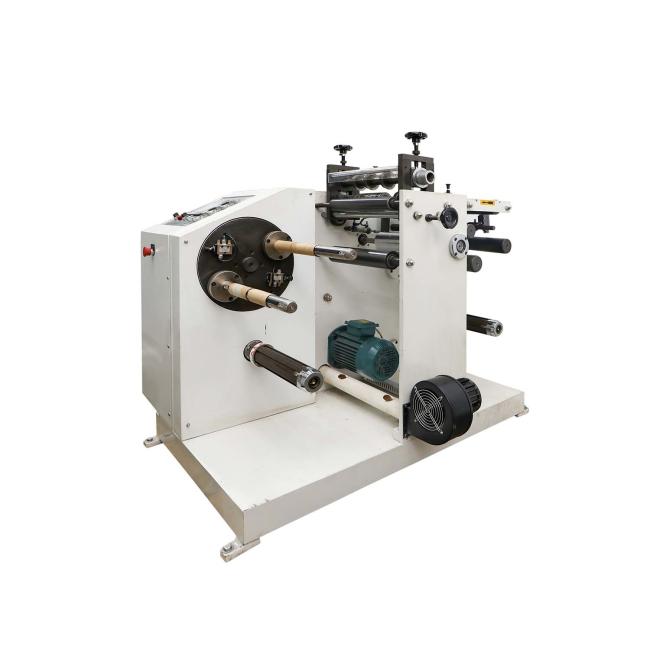

320D Auto Turrent Rewind Adhesive Label Paper Slitting And Rewinding Machine
Product Description
This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.
Main features

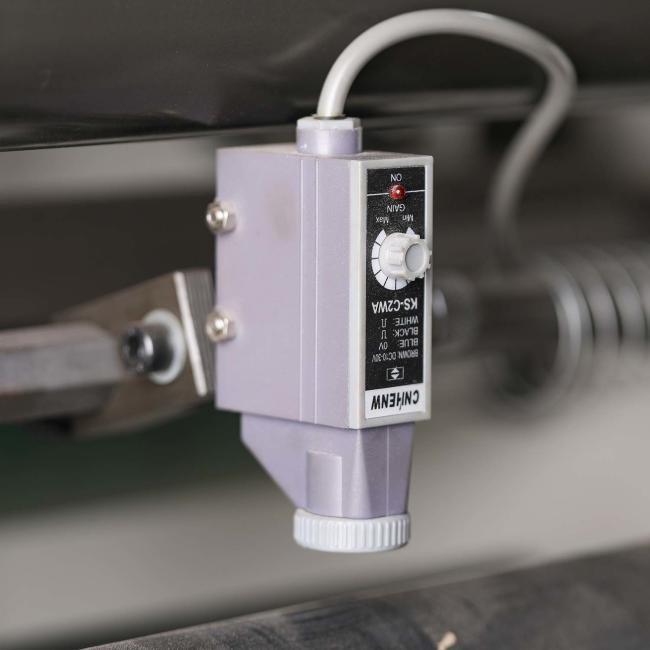

- Have 1 photo electric eyes for web guide
- Have meter counting
-Frequency inverter control system
- Use 3 inch air shaft(Φ76mm) for unwind (also can make according to your request)

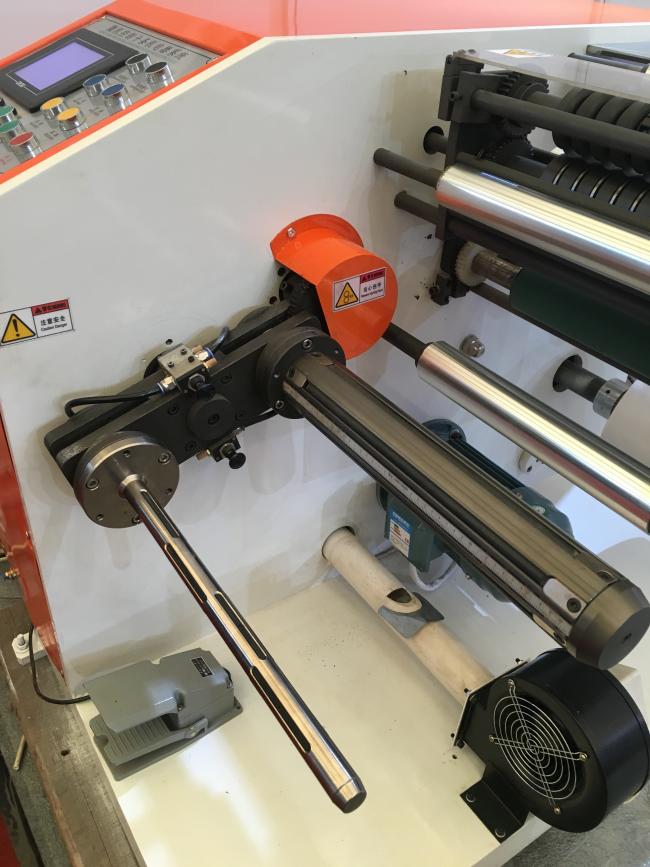

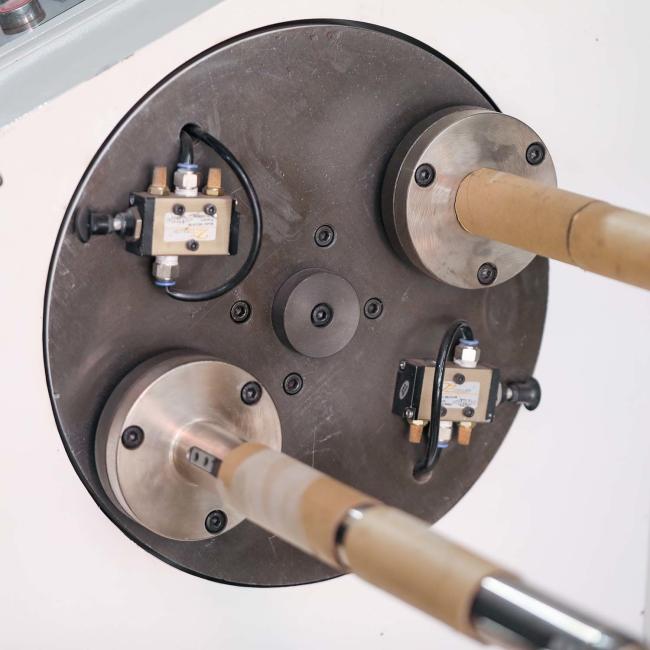

- Use turrent rewind, 1 pcs 3 inch air shaft and 1 pcs 1 inch air shaft.
-With touch screen control panel
- With auto taper tension control
- Have one wasting fan

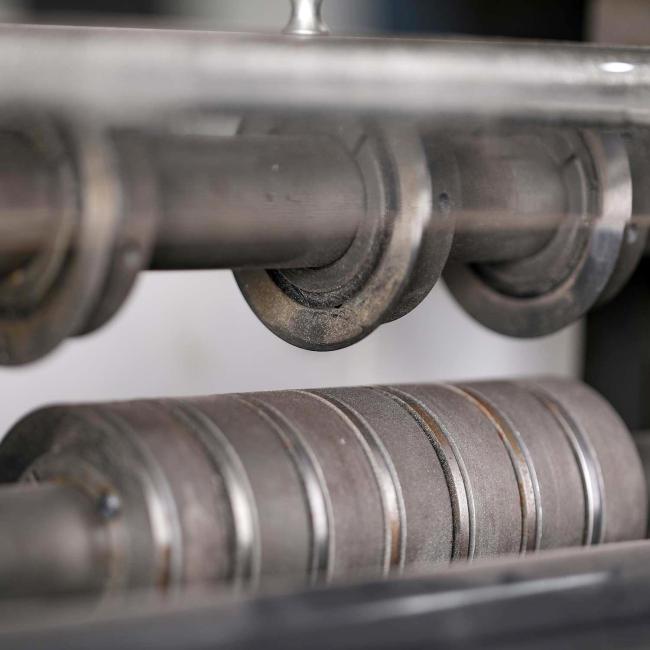

-Have 8 sets knife
Main Technical Specification:
| Max web width | 320mm |
| Max rewinding diameter | 300mm |
| Max. unwinding diameter | 500mm |
| Slitting width | 20mm |
| Power Voltage | AC220V±10% |
| Cutting precision | 0.2mm |
| Total Power | 2KW |
| slitting peed | 10-160m/min |
| Overall dimensions(L*W*H) | 1.3*1.1*1.2m |
| Machine weight | 400kg |
