Ruiting Paper Slitting Rewinding Machine With Web Guide System
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 working days
Brand:
ruiting
Product Description

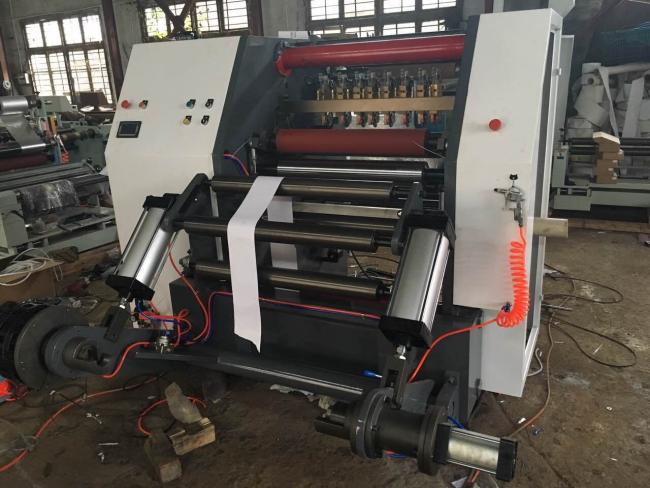

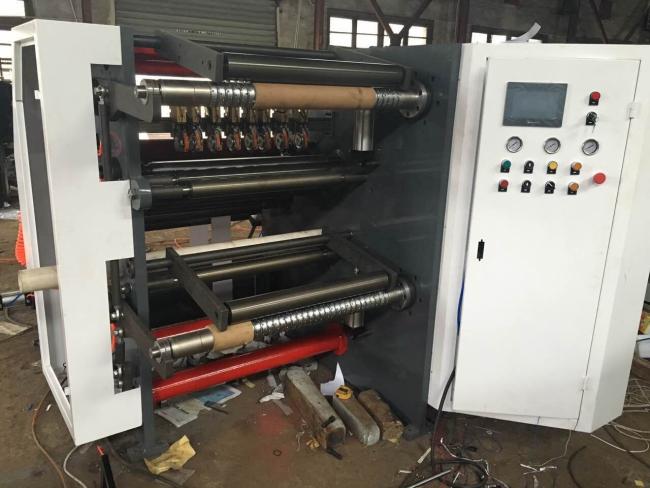

800B Jumbol Roll Slitting Machine With Web Guide System
Product Description
This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.
Main features

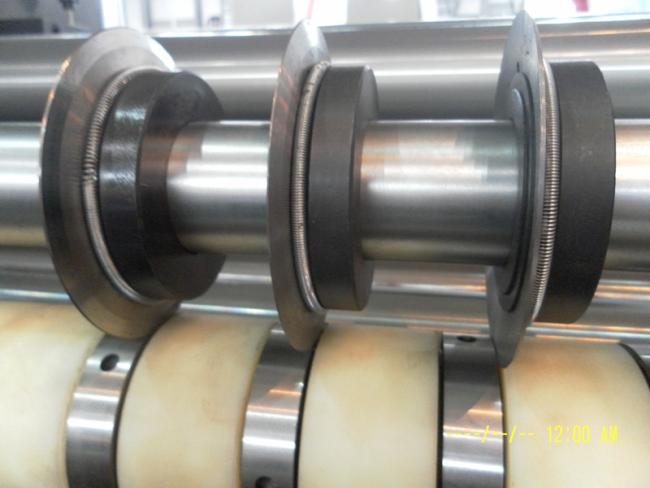

1) 10 sets of round knife in the machine(If you slit film, we will offer you 10 sets straight knife)
2) Unwinding and rewinding controlled by magnetic powder brake and clutch
3) Use web guide system
4) Auto tension control
5) Have meter counting
6) Use frequency inverter to control the speed
7) PLC control system, touch screen operate
8) With auto loading system
Main Technical Specification:
| Max. web width | 800mm |
| Max. unwinding diameter | 600mm |
| Max. rewinding diameter | 500mm |
| Min. itemize width | 20mm |
| Slitting precision | ±0.2mm |
| Cutting speed | 5-200m/min |
| Overall dimensions(L*W*H) | 1.8*1.5*1.5m |
| Machine weight | 1000kg |
